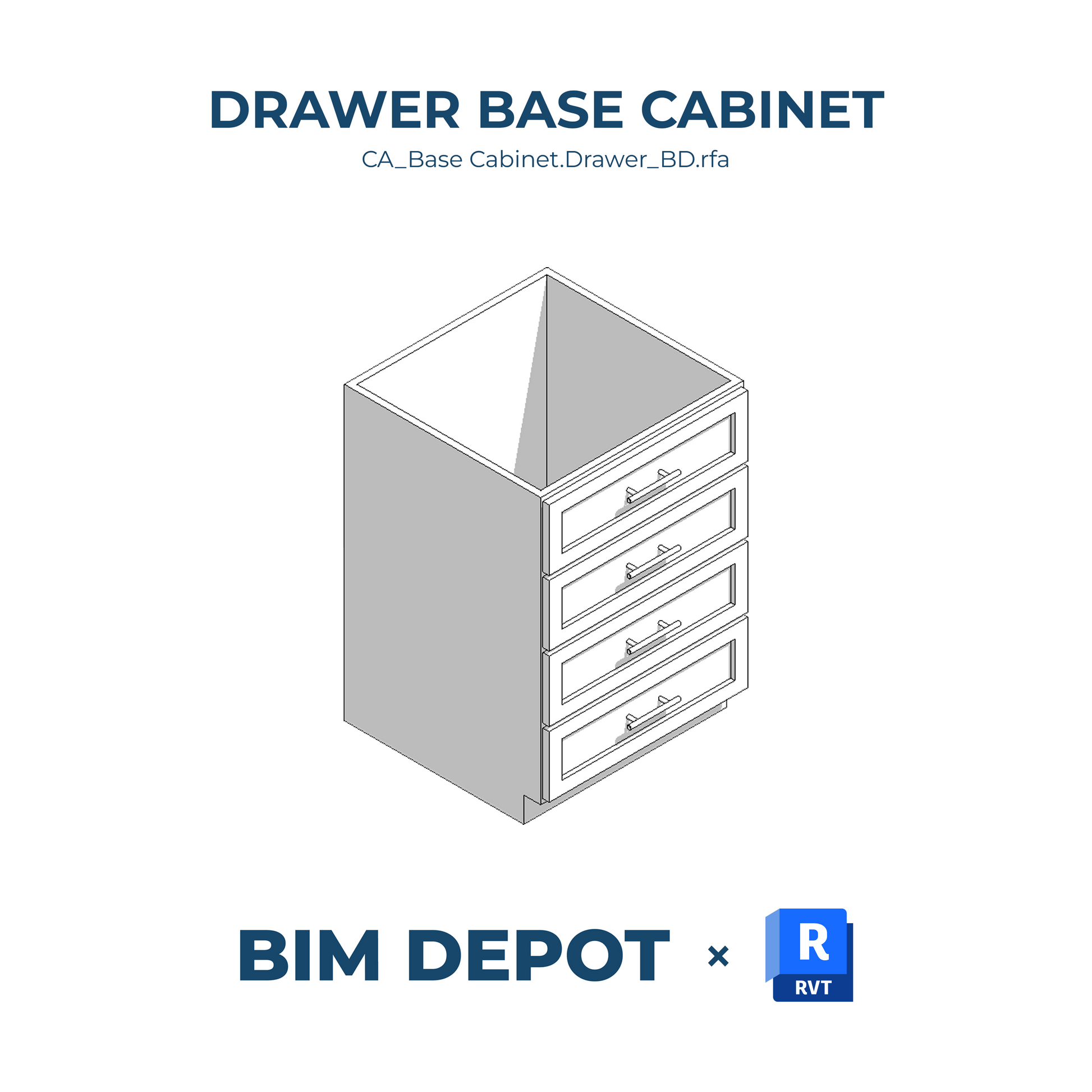

This Base Cabinet with Drawers Revit Family is built for performance, precision, and clean documentation. Ideal for kitchens, bathrooms, and built-in millwork, this fully parametric cabinet includes stacked drawers, giving you greater flexibility for modern casework layouts in both residential and commercial projects.
Product Features
- Fully parametric design: adjustable overall width, height, depth, and drawer quantities
- Individual drawer geometry for detailed 3D modeling
- Linework for clear plan and elevation graphics
- Casework category with subcategory control for visibility and lineweights
- Material parameters for rendering and cost estimation
Use Cases
- Kitchen drawer base cabinets
- Bathroom vanities with drawer storage
- Custom millwork layouts and built-in storage
- Interior elevations, 3D views, and construction documents
- Scheduling and quantity takeoffs
This family is part of the BIM Depot Revit Family Collection, designed for professional workflows with clean geometry, proper visibility settings, and native Revit parameters. Whether you're drafting schematic designs or producing construction documents, this cabinet family ensures accuracy and efficiency.
Pro Tip: Pair this base drawer unit with wall and tall cabinets from the BIM Depot collection for a cohesive, modular Revit casework system.
Imperial & Metric versions compatible with Revit 2022 and newer.
