Base Cabinet with Full Height Door - Revit Casework Family

Base Cabinet with Full Height Door - Revit Casework Family

Exclusive Members Only Asset
Regular price Sale price $9 USD
Sale Sold out
System of Measurement

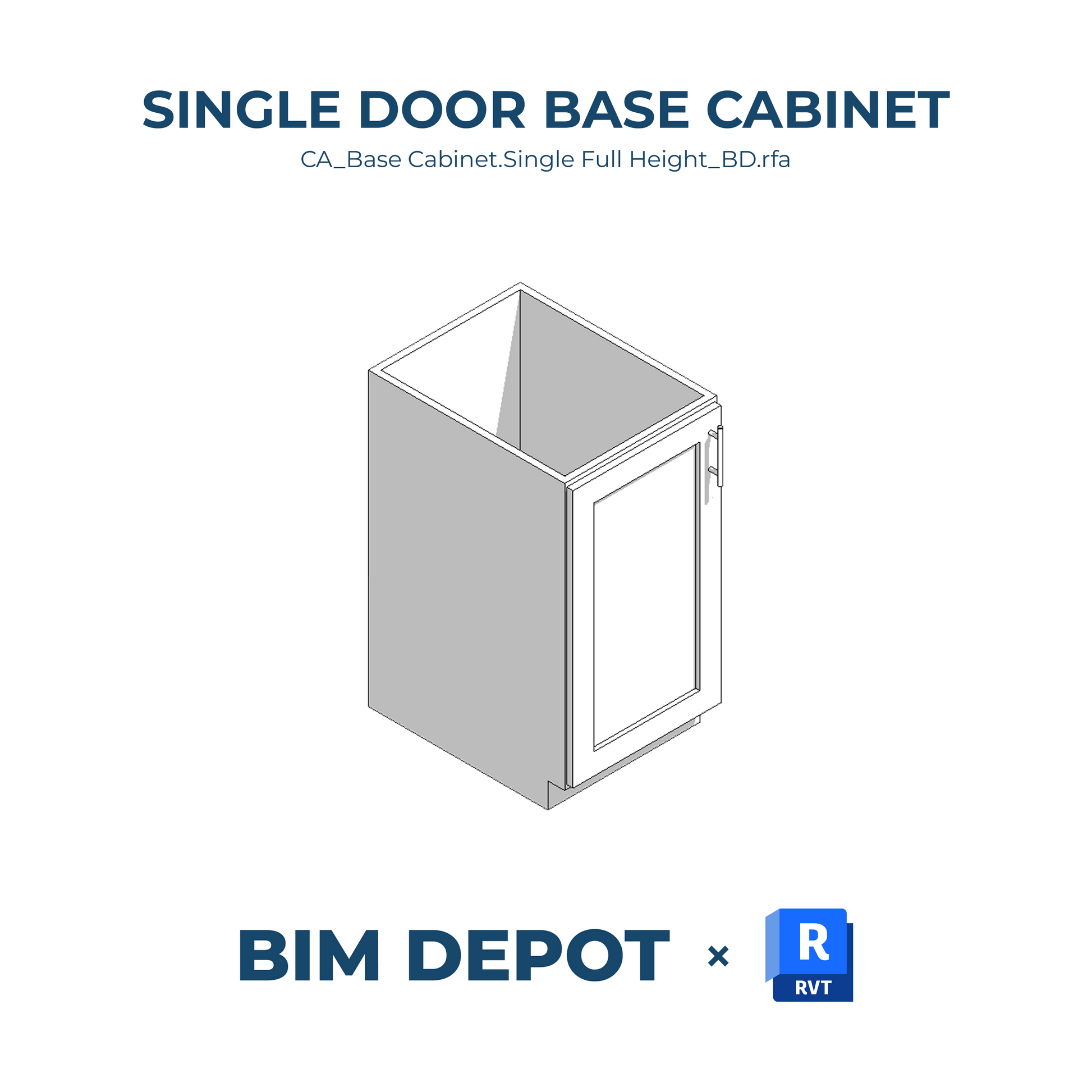

This Base Cabinet with Full Height Door Revit Family is designed for clean, modern millwork layouts. Ideal for both residential and commercial interiors, this fully parametric cabinet provides a streamlined aesthetic and flexible dimensions for kitchens, bathrooms, and custom casework installations.

Product Features

  • Fully parametric: adjust width, height, depth, and toe kick
  • Single full height door with flexible swing direction
  • Symbolic linework included for accurate plan and elevation views
  • Properly categorized under Casework with organized subcategories for visibility control
  • Material parameters for rendering and quantity schedules

Use Cases

  • Modern kitchen and bathroom layouts
  • Custom casework and built-in designs
  • Plans, interior elevations and 3D views
  • Construction documentation and cabinet schedules
  • Multi-family, single-family, and commercial projects

Part of the BIM Depot Revit Family Collection, this base cabinet is built to industry standards and ready to drop into your Revit projects. It’s perfect for streamlined modeling, clean documentation, and accurate material takeoffs.

Pro Tip: Combine this family with drawer units, corner cabinets, and wall cabinets from the BIM Depot collection to build a complete, modular Revit kitchen system.

Imperial & Metric versions compatible with Revit 2022 and newer.
