BIM Depot
Break Line
Break Line
Couldn't load pickup availability

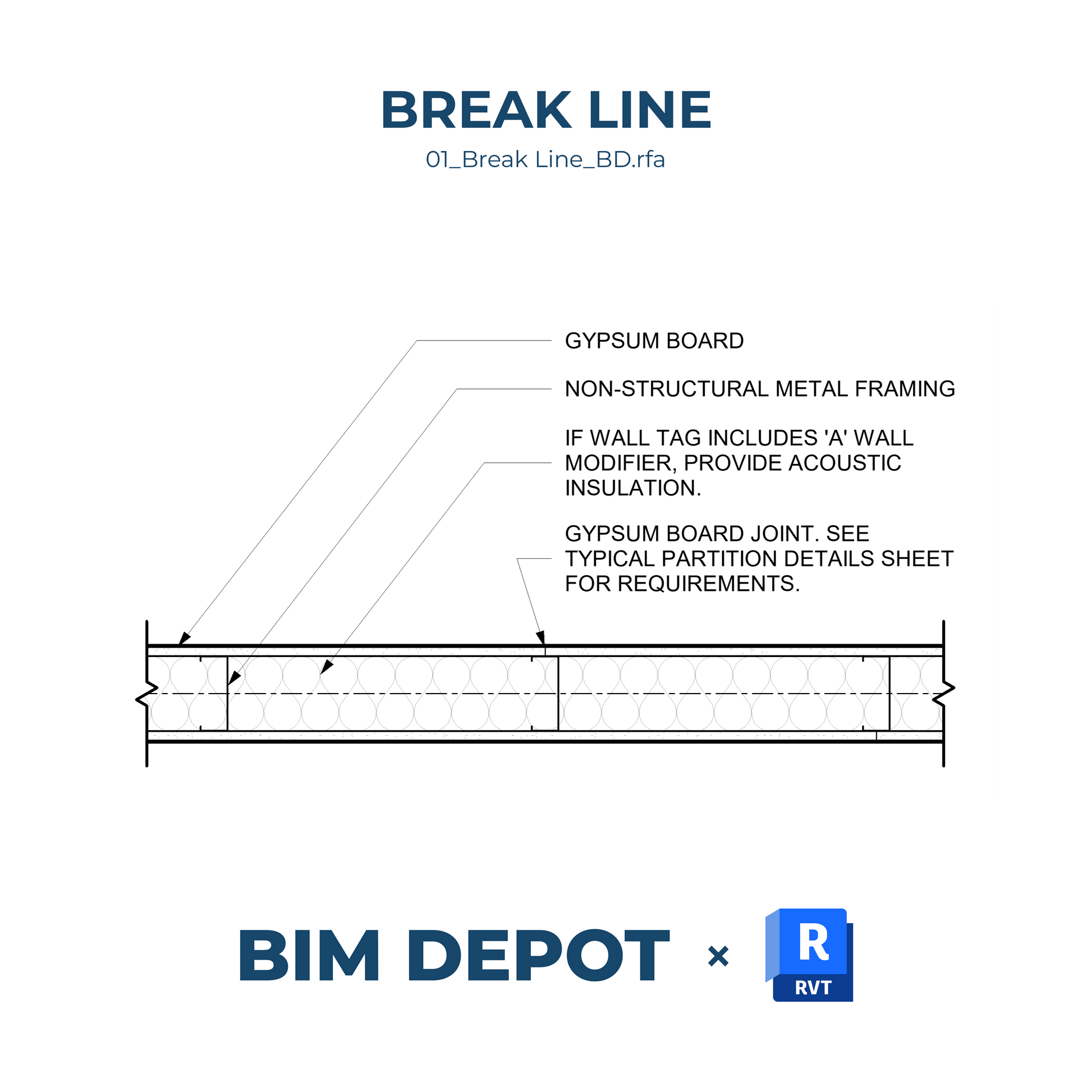

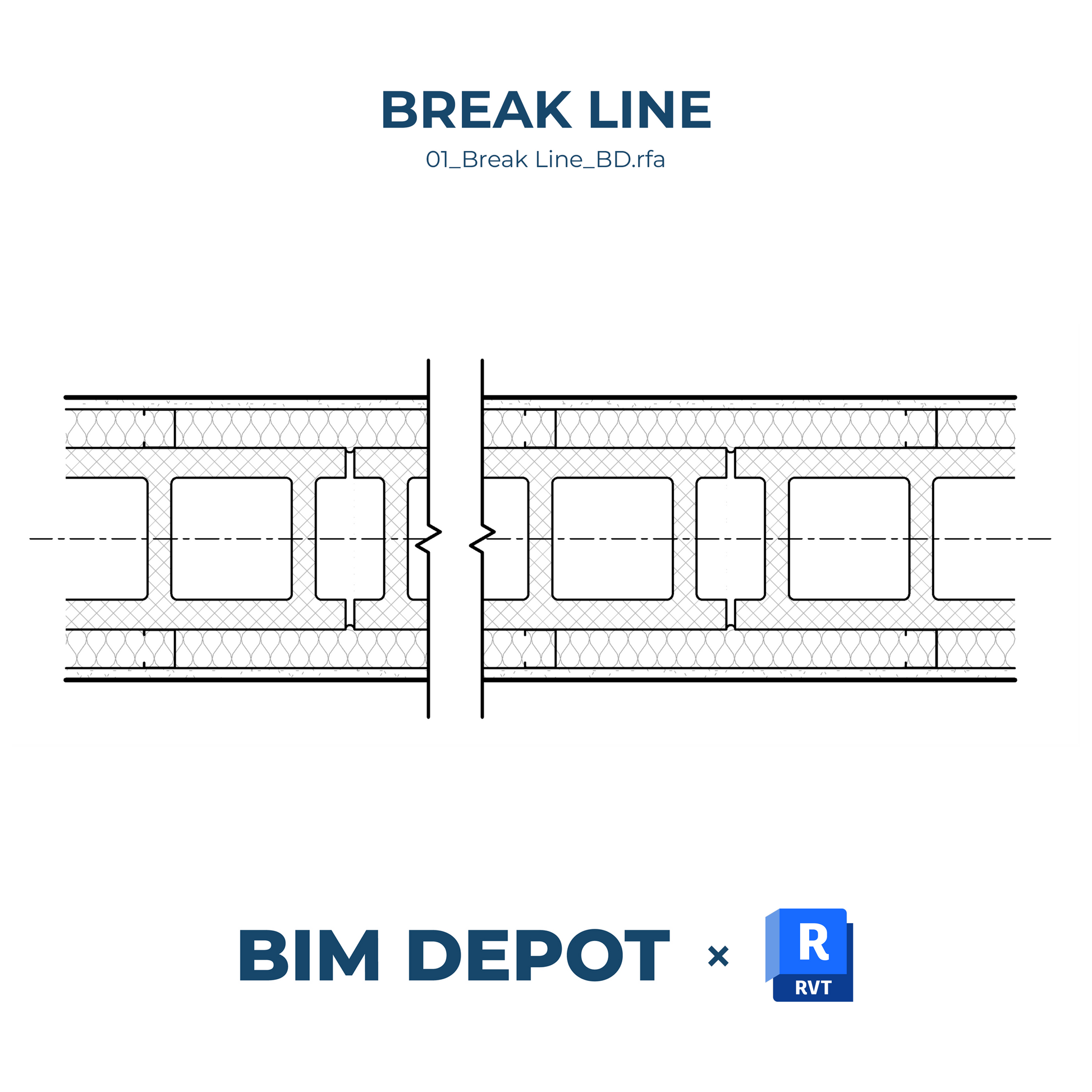

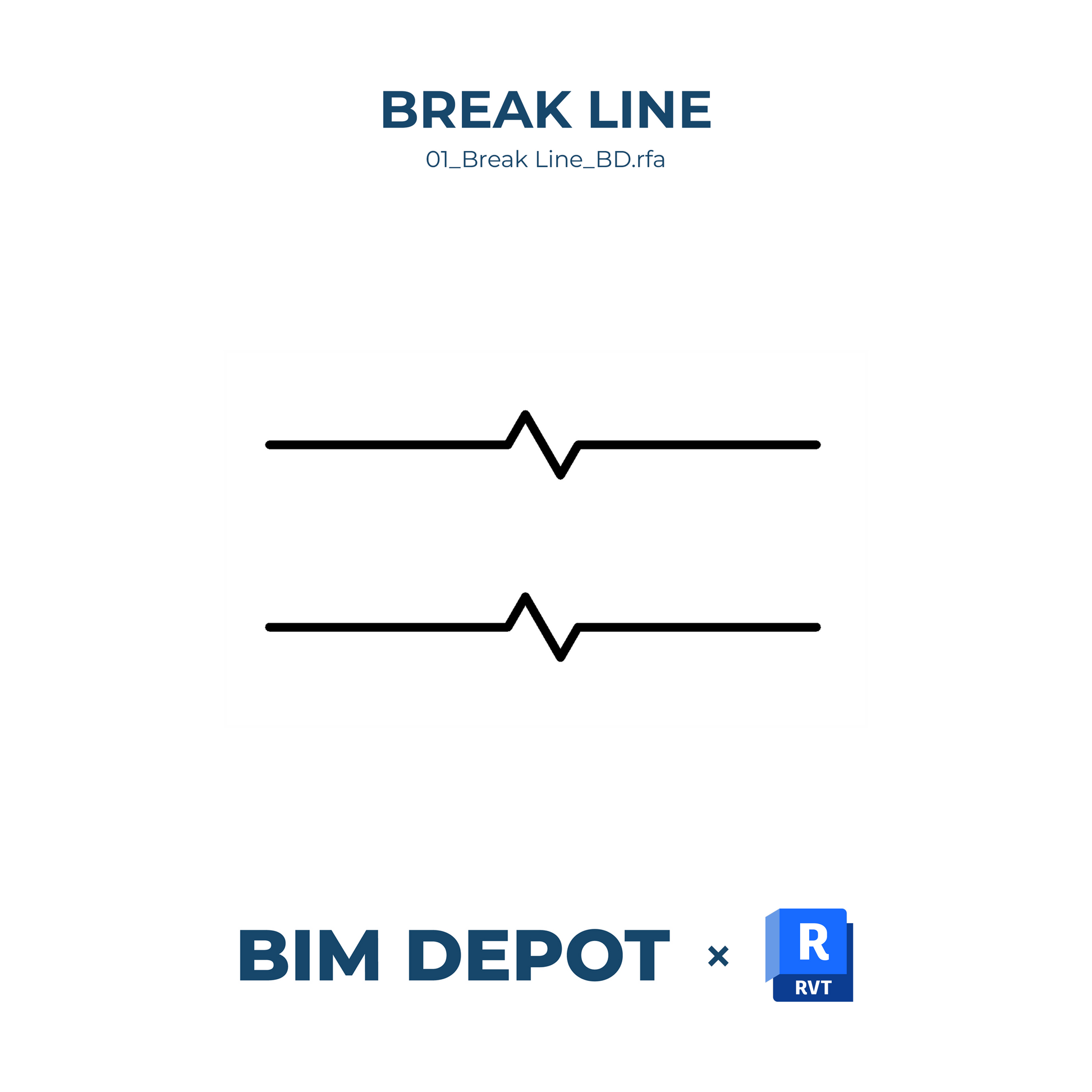

In drafting, break lines are drawn to show that part of a drawing has been shortened to reduce its size on the sheet. Unlike the Revit out of the box break line family, the BIM Depot Break Line contains a fixed zig-zag angle. The family has the option to be single- or double-sided and has a masking region is built in.
Revit 2024
Share
![Break Line](http://bim-depot.com/cdn/shop/files/01_BreakLine_BD-01_9ccc2212-4843-4baa-a96a-a1be7c9be599.png?v=1708797787&width=1445)
![Break Line](http://bim-depot.com/cdn/shop/files/01_BreakLine_BD-03_24e0329b-6c01-4865-929c-0afb4157cdb5.png?v=1708797804&width=1445)
![Break Line](http://bim-depot.com/cdn/shop/files/01_BreakLine_BD-02_b21be960-a7cb-4977-a36a-e836d3ae7b25.png?v=1708797804&width=1445)
NOTE: BIM Depot does not provide access to or license for the software. BIM Depot solely provides the asset described in the product description.
