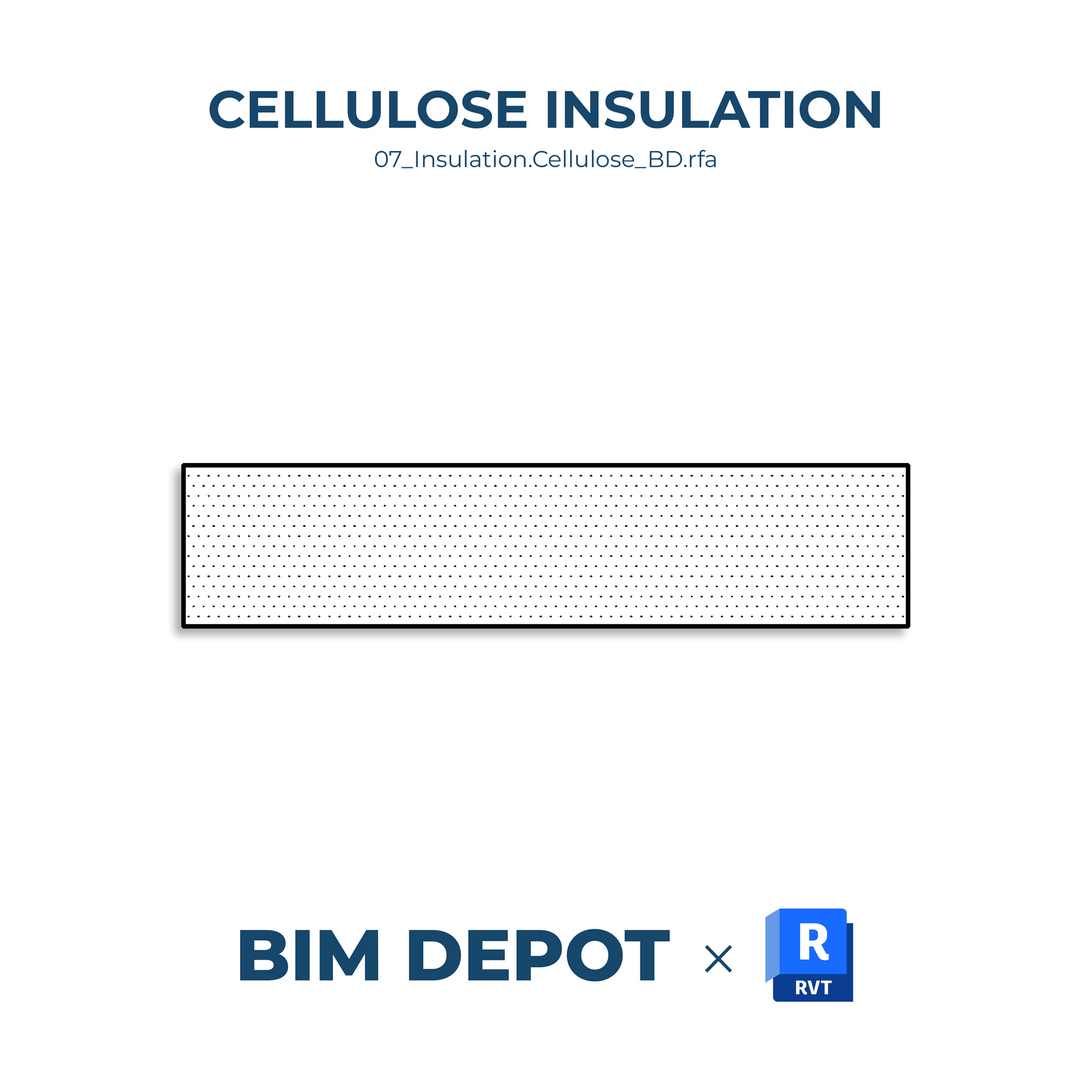

Cellulose Insulation - Revit Detail Component Family

Cellulose Insulation - Revit Detail Component Family

Exclusive Members Only Asset
Regular price Sale price $5 USD
Sale Sold out
System of Measurement

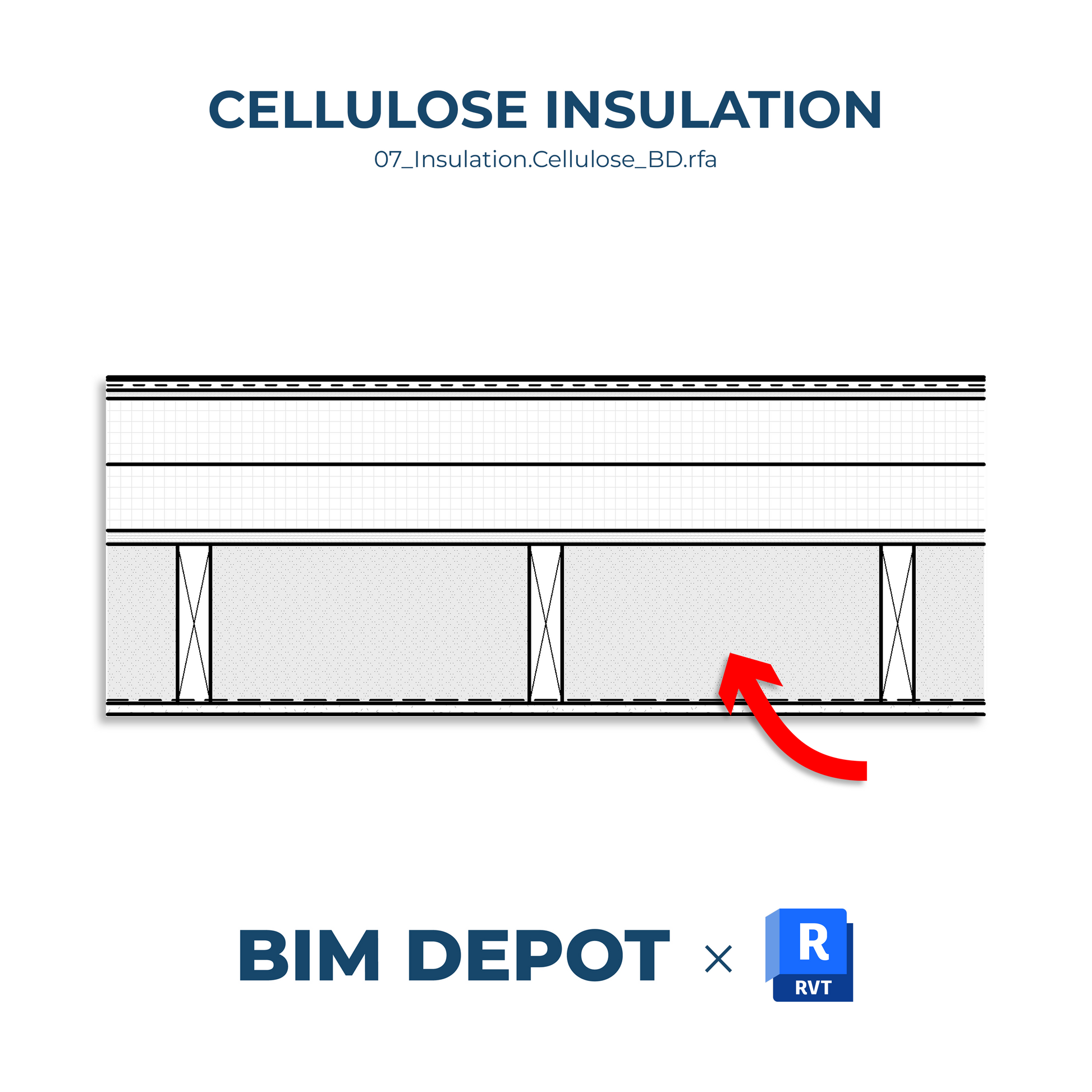

Accurately represent loose-fill or dense-pack cellulose insulation in your Revit details with this high-quality, ready-to-use component family. Designed for architects and designers working on energy-efficient or sustainable buildings, this detail element is perfect for wall, ceiling, and roof cavity sections.

Whether you're documenting a high-performance retrofit or new construction, this family helps communicate insulation strategies clearly and professionally in your construction drawings.

  • Optimized for use in wall, ceiling, and roof details
  • Clean, consistent linework for professional documentation
  • Ideal for sustainable and energy-efficient design workflows
  • Works seamlessly with framing, sheathing, and netting components
  • Easy to scale and align in any Revit detail view

A must-have for teams producing code-compliant, high-performance construction documents in Revit.

Revit 2022, Revit 2023, Revit 2024, Revit 2025, Revit 2026  |  Imperial
