Concrete Beam - Revit Detail Component Family
Concrete Beam - Revit Detail Component Family

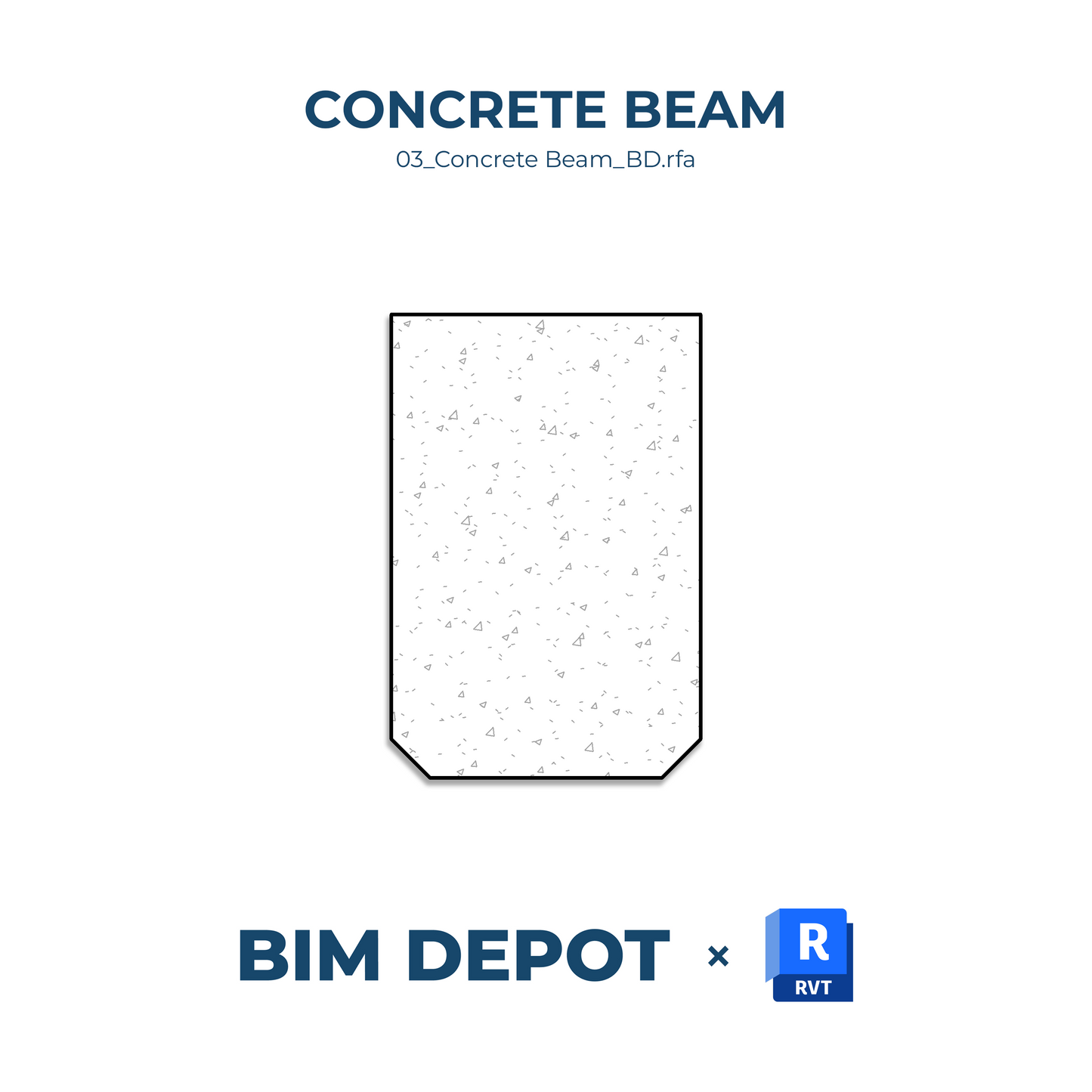

The Concrete Beam detail component can be used in section and drafting views. The family has built in options for chamfered corners and the top line can be hidden to joint with the BIM Depot Concrete Slab family.
The Concrete Beam Revit Detail Component Family is a clean, scalable 2D drafting element designed to represent cast-in-place concrete beams in section and detail views. Ideal for both architectural and structural documentation, this component supports clear, consistent construction details across all phases of your Revit projects.
Product Features
- 2D detail component optimized for use in sections, callouts, and drafting views
- Scalable rectangular profile based on typical beam dimensions
- Clean linework for precise construction document graphics
- Categorized under Detail Components for fast placement and controlled visibility
- Lightweight geometry ideal for large project templates and detail libraries
Use Cases
- Structural framing section details
- Beam-to-slab and beam-to-wall intersections
- Cast-in-place concrete documentation
- Drafting views for permit, bid, and construction sets
- Architectural/structural coordination drawings
Part of the BIM Depot Detail Component Library, this concrete beam detail is built to help architects, engineers, and BIM professionals efficiently assemble structural drawings with clean, standard-compliant visuals. It supports fast drafting and consistent detail development across your project sets.
Pro Tip: Use in combination with BIM Depot’s rebar, slab edge, column, and floor assembly components for a fully coordinated structural detail library. Become a BIM Depot Member to gain full access to the entire collection of Revit Families.
Imperial versions compatible with Revit 2022 and newer.
