Concrete Floor - Revit Detail Component Family
Concrete Floor - Revit Detail Component Family

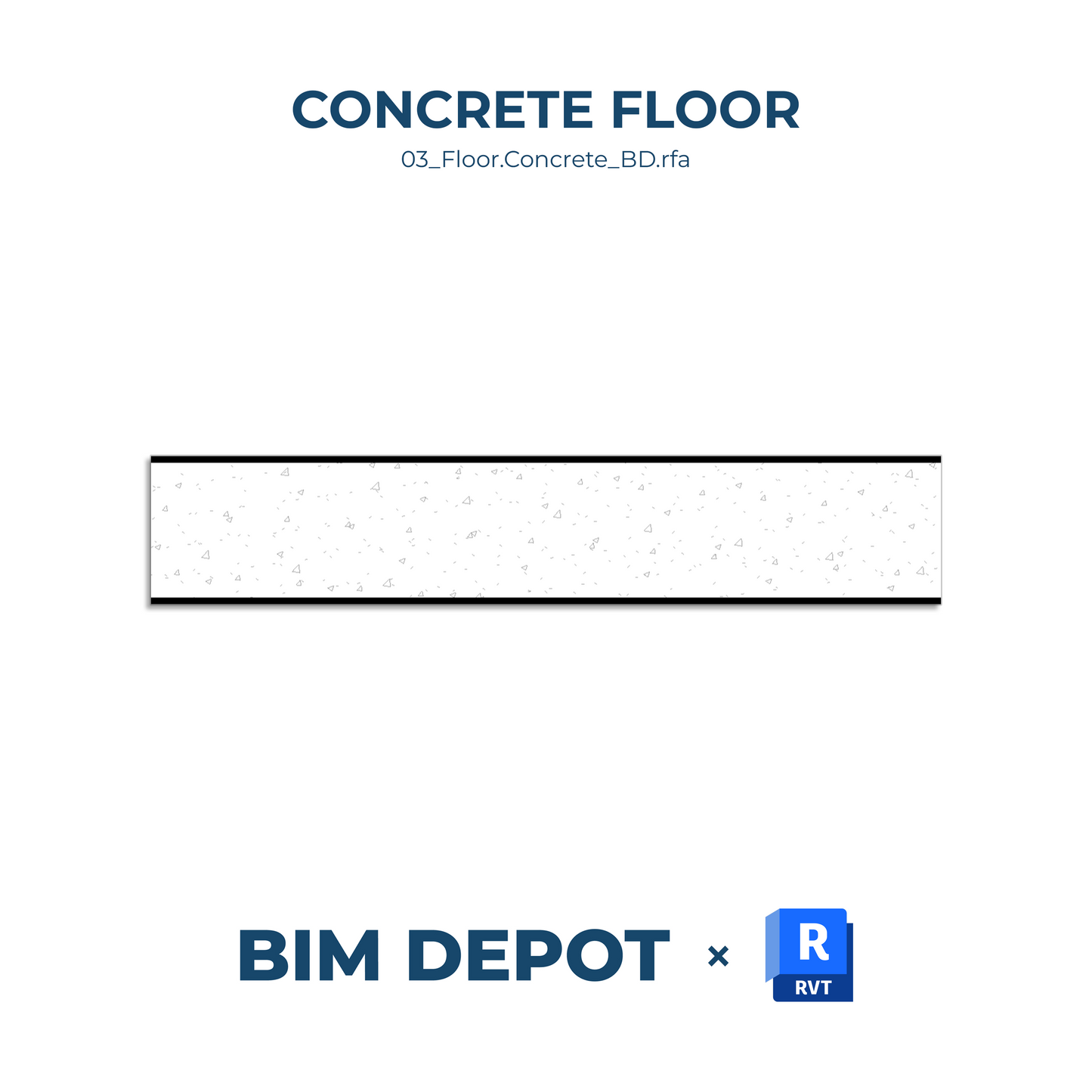

The Concrete Floor Family can be used in drafting or section views. This component can either represent the full thickness of the slab or a partial thickness. The family has built in visibility parameters to show/hide the boundary lines, which is useful to show partial slab thickness and to signify the floor runs past the drawing crop boundaries.
The Concrete Floor – Revit Detail Component Family is a 2D drafting element designed to represent typical cast-in-place concrete floor assemblies in section and callout views. Whether you're detailing a slab-on-grade, elevated slab, or podium deck, this component offers clean geometry and consistent documentation for architectural and structural drawings.
Product Features
- 2D detail component optimized for section and callout views
- Standard profile representing concrete floor thickness and layering
- Clean, symbolic linework for high-quality construction documents
- Categorized under Detail Components for easy placement and visibility control
- Lightweight geometry suitable for large-scale Revit projects and templates
Use Cases

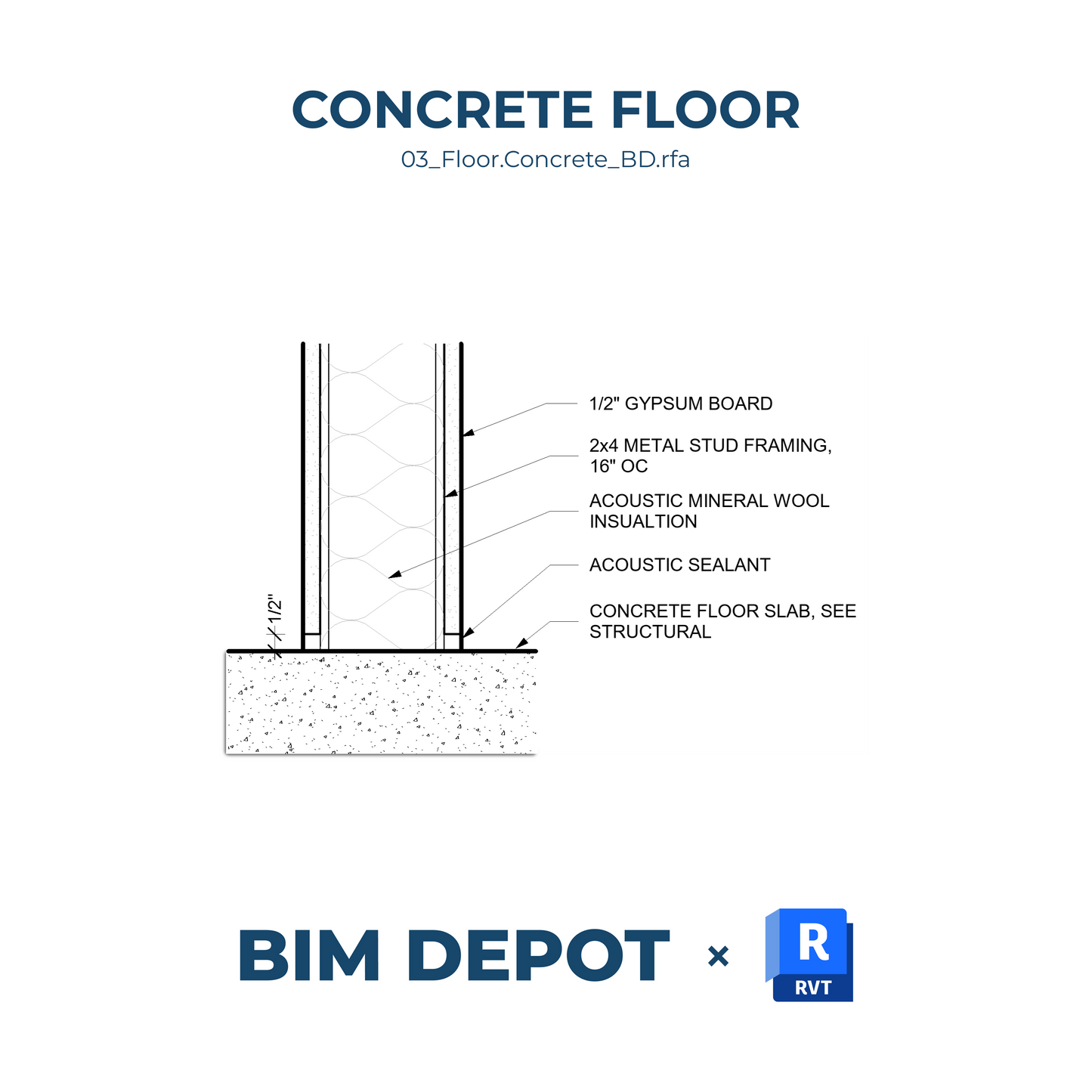

- Slab-on-grade and structural slab section details
- Floor assembly detailing in wall sections and building sections
- Podium slab and deck conditions in mixed-use buildings
- Drafting views for bid, permit, and construction documentation
- Coordination between architectural, structural, and MEP systems
Part of the BIM Depot Detail Component Library, this concrete floor component helps teams produce fast, accurate, and consistent Revit details across all project types. It supports high-performance documentation workflows with minimal setup.
Pro Tip: Combine with BIM Depot’s finish floor, insulation, reinforcement, and slab edge components to create complete floor assemblies with professional clarity. Become a BIM Depot Member to gain full access to the entire collection of Revit Families.
Imperial versions compatible with Revit 2024 and newer.
Share


NOTE: BIM Depot does not provide access to or license for the software. BIM Depot solely provides the asset described in the product description.
