Corner Base Cabinet - Revit Casework Family

Corner Base Cabinet - Revit Casework Family

Exclusive Members Only Asset
Regular price Sale price $9 USD
Sale Sold out
System of Measurement

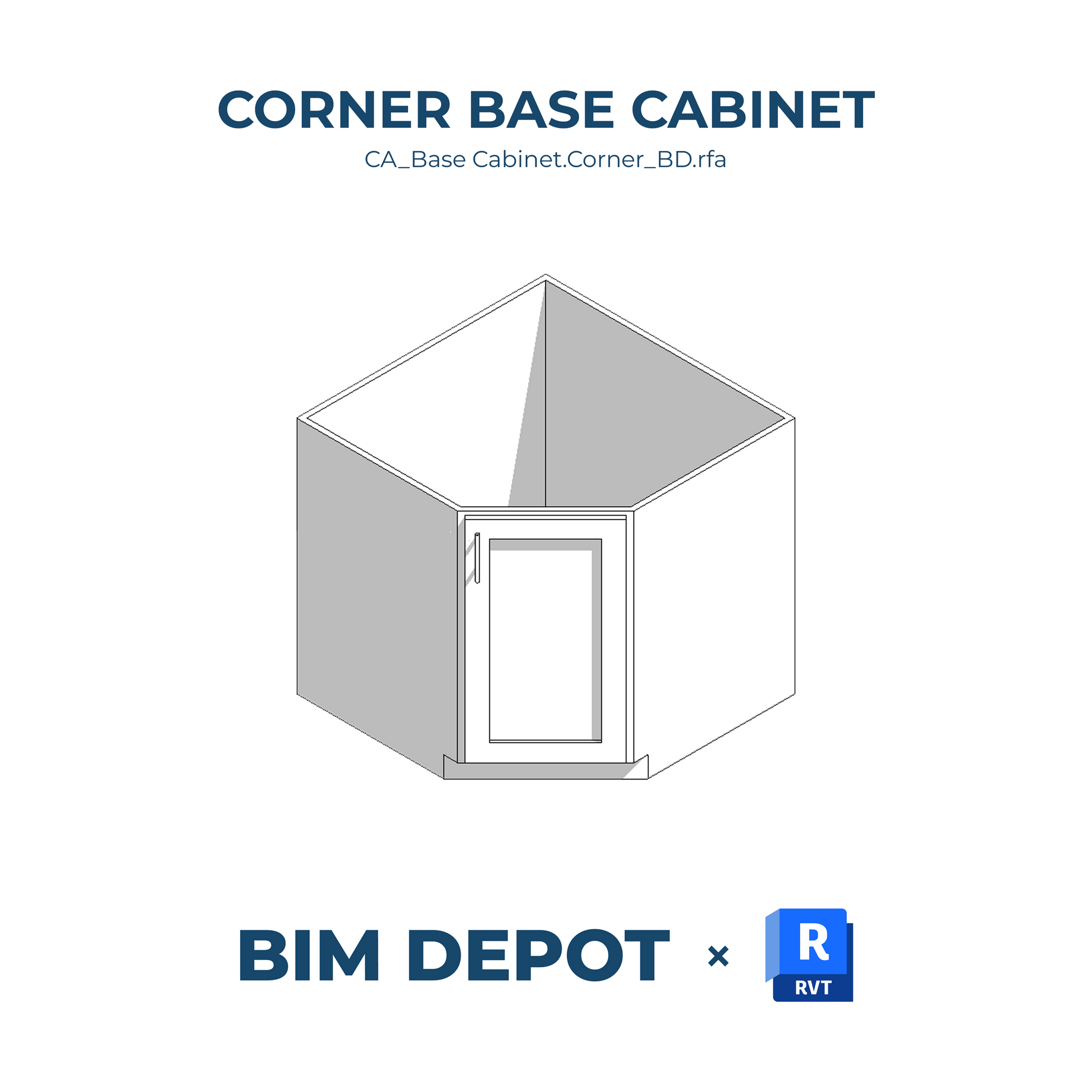

Add precision and flexibility to your kitchen and millwork layouts with this Corner Base Cabinet Revit Family. Designed specifically for flexible adoption into any kitchen, this family is ideal for fitting cleanly into corners while maintaining graphic consistency across plans, elevations, and 3D views.

Product Features

  • Fully parametric corner geometry with adjustable width, depth, and height
  • Optional hardware, door, and toe kick controls
  • Symbolic plan graphics for clean construction documents
  • Properly assigned to the Casework category with subcategories for lineweight control
  • Material parameters for rendering and material takeoffs

Use Cases

  • L-shaped kitchen and bathroom layouts
  • Custom casework packages
  • Interior elevations, perspectives, and renderings
  • Accurate scheduling and tagging
  • Residential and commercial design projects

This corner base cabinet is part of the BIM Depot Revit Family Collection – a professional-grade library created to meet drafting standards and streamline your Revit workflow. Whether you're designing for a single-family home or a commercial kitchen, this family integrates seamlessly into your project.

Pro Tip: Combine this corner unit with other BIM Depot base and wall cabinets to build complete kitchen systems in minutes. Save time, improve consistency, and deliver higher-quality construction documents with BIM-ready content.

Imperial & Metric versions compatible with Revit 2022 and newer.
