Double Casement Window - Revit Window Family

Double Casement Window - Revit Window Family

Exclusive Members Only Asset
Regular price Sale price $13 USD
Sale Sold out
System of Measurement
Members Only! Click to join.

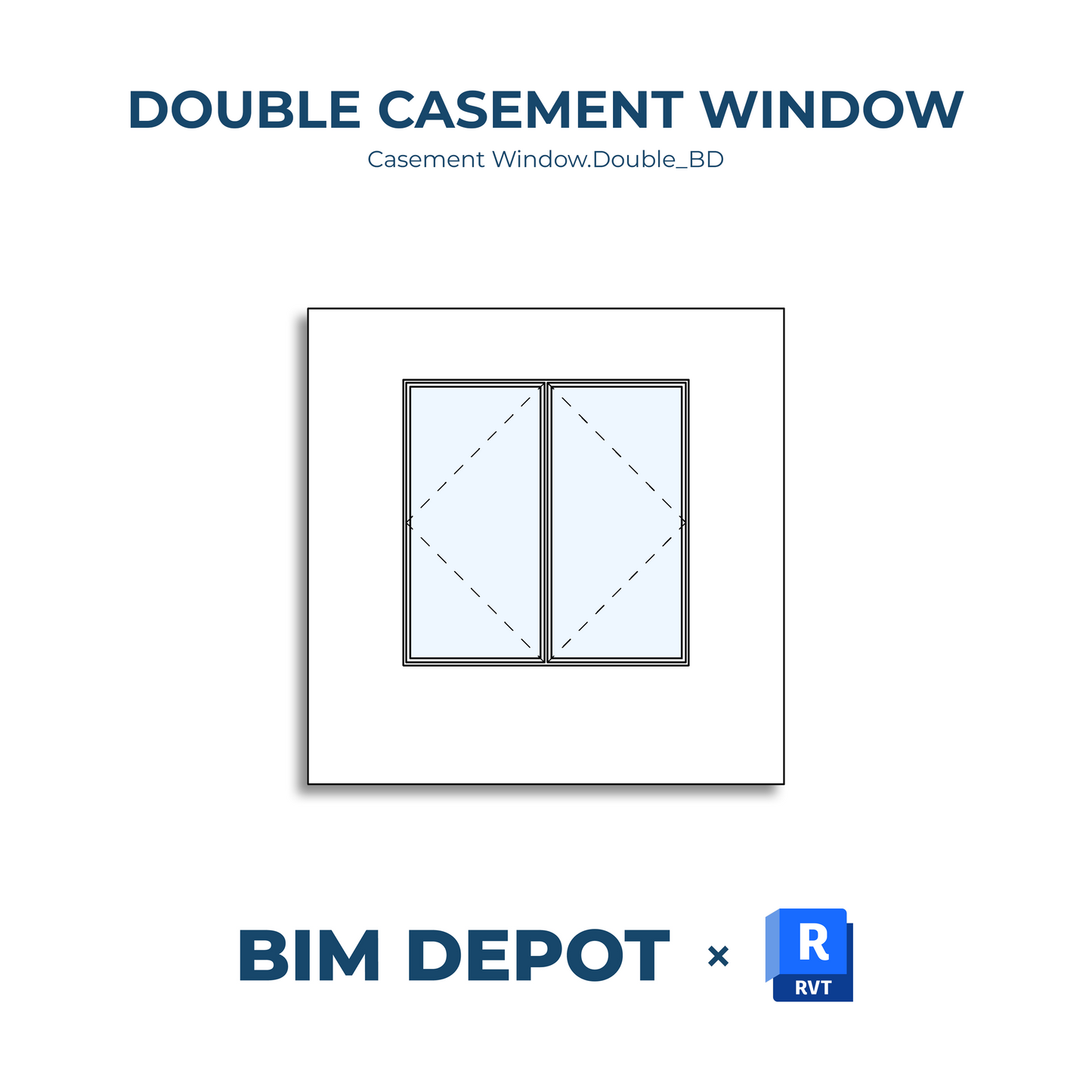

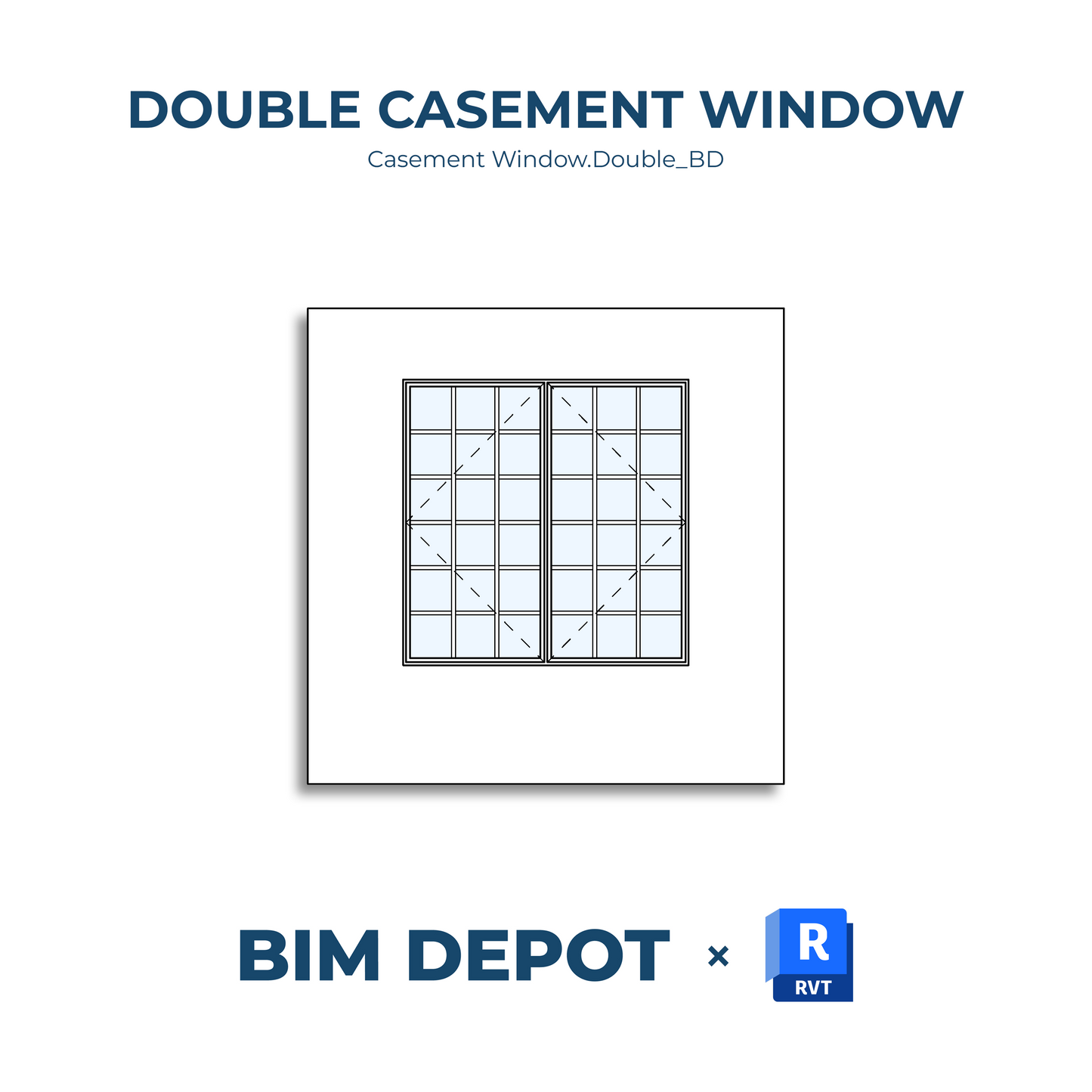

The Double Casement Window Family is a fully parametric, BIM-ready window designed for clean, accurate modeling in residential and commercial projects. This family features operable double casement sashes, with adjustable frame dimensions, mullion & muntin options, and material parameters for rendering and documentation.

With clean symbolic graphics, detailed 3D geometry, and proper category assignments, this window integrates seamlessly into plans, elevations, window schedules, and construction documents.

Become a BIM Depot Member to gain full access to the entire collection of Revit Families.

Imperial versions compatible with Revit 2024 and newer.

View full details

NOTE: BIM Depot does not provide access to or license for the software. BIM Depot solely provides the asset described in the product description.
