Easy Reach Corner Upper Cabinet - Revit Casework Family

Easy Reach Corner Upper Cabinet - Revit Casework Family

Exclusive Members Only Asset
Regular price Sale price $9 USD
Sale Sold out
System of Measurement

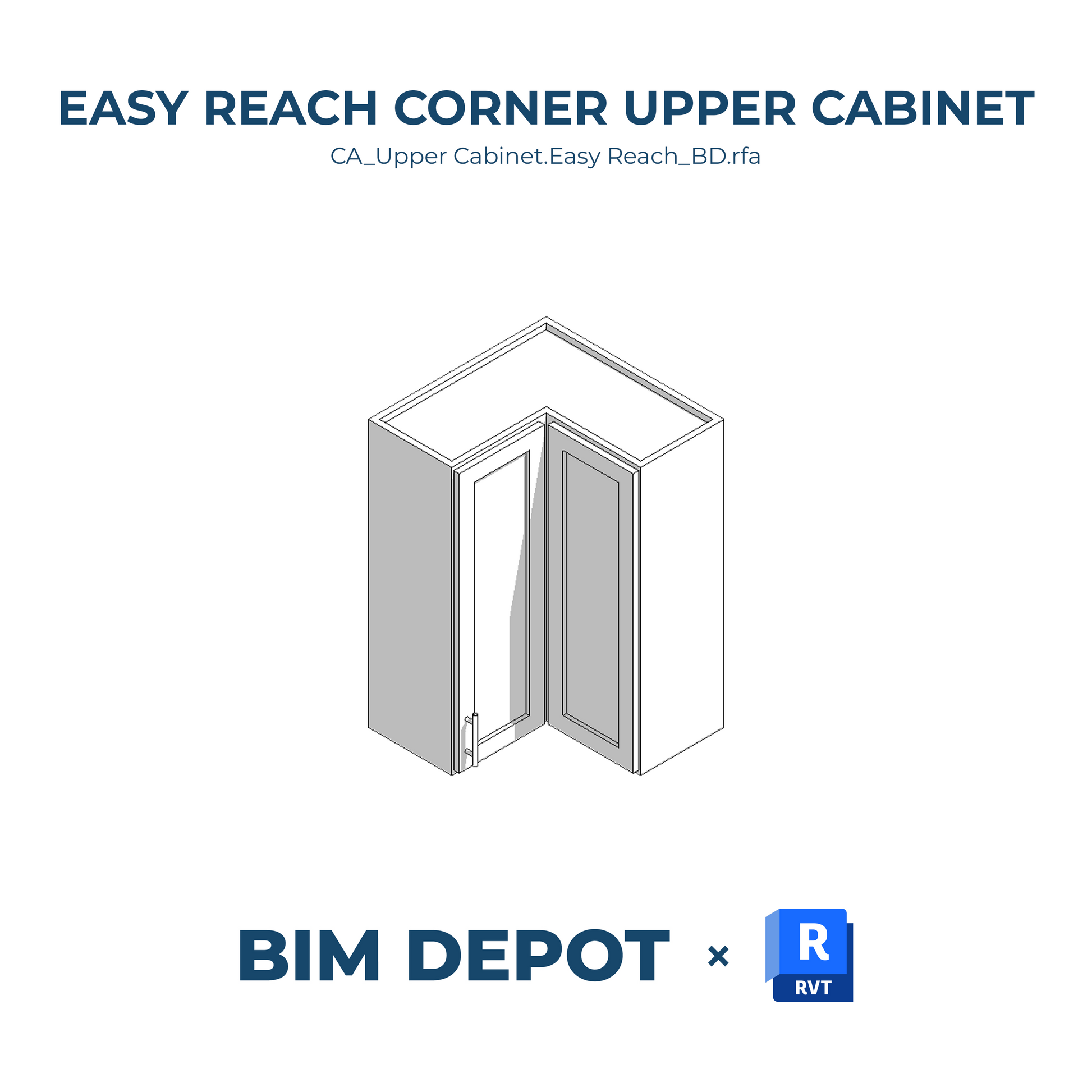

The Easy Reach Corner Upper Cabinet Revit Family is a fully parametric wall cabinet designed for optimized storage and smooth corner transitions in U-shape and L-shaped kitchen and utility layouts. Featuring a diagonal front face, this cabinet maximizes accessibility and visual clarity while maintaining clean documentation and BIM-ready geometry.

Product Features

  • Fully parametric: control width, depth, height, and door swing
  • Diagonal front design for efficient corner placement
  • Symbolic linework included for clean floor plans and elevations
  • Assigned to the Casework category with subcategory visibility control
  • Material parameters for rendering and quantity takeoffs

Use Cases

  • Corner wall cabinet in kitchen and laundry layouts
  • Upper cabinet storage in U-shape and L-shaped configurations
  • Interior elevations and 3D perspectives
  • Construction documents and cabinet schedules
  • Residential, multi-family, and commercial interiors

Part of the BIM Depot Revit Family Collection, this Easy Reach Upper Cabinet is crafted for real-world accuracy and seamless integration. It ensures consistent performance across all views while supporting fast, professional Revit workflows.

Pro Tip: Combine with adjacent BIM Depot wall and base cabinets to build a modular, fully coordinated Revit casework system. Become a BIM Depot Member to gain full access to the entire collection of Revit Families.

Imperial & Metric versions compatible with Revit 2022 and newer.
