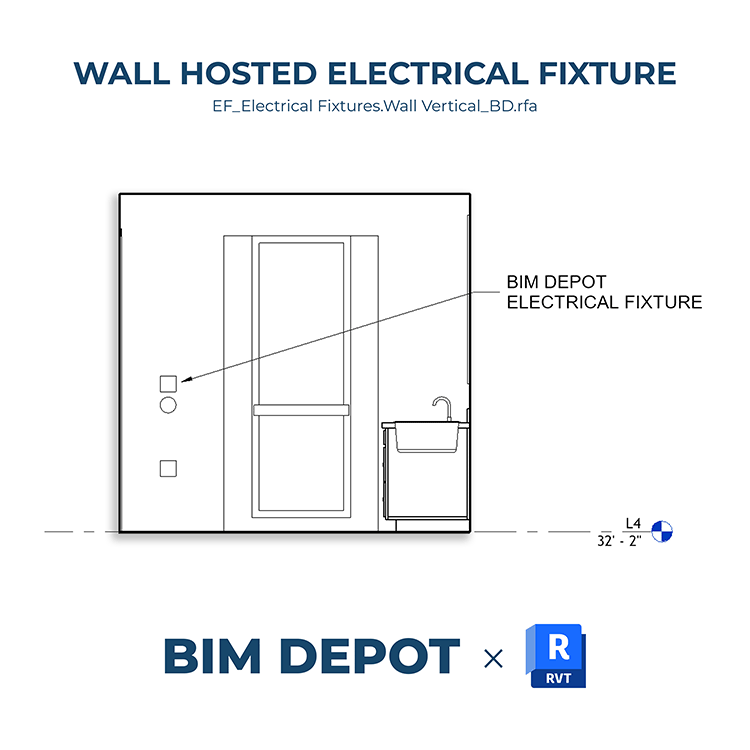

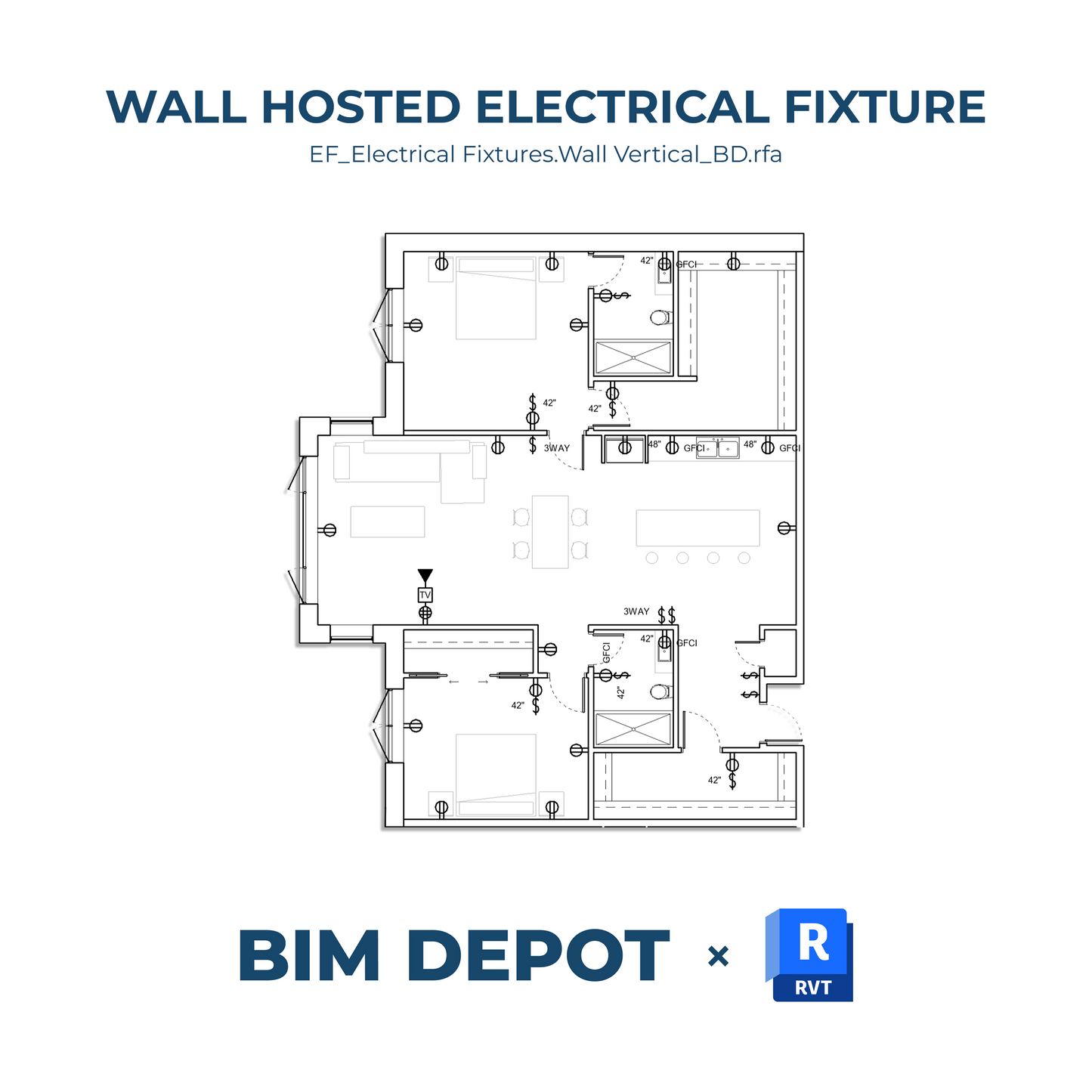

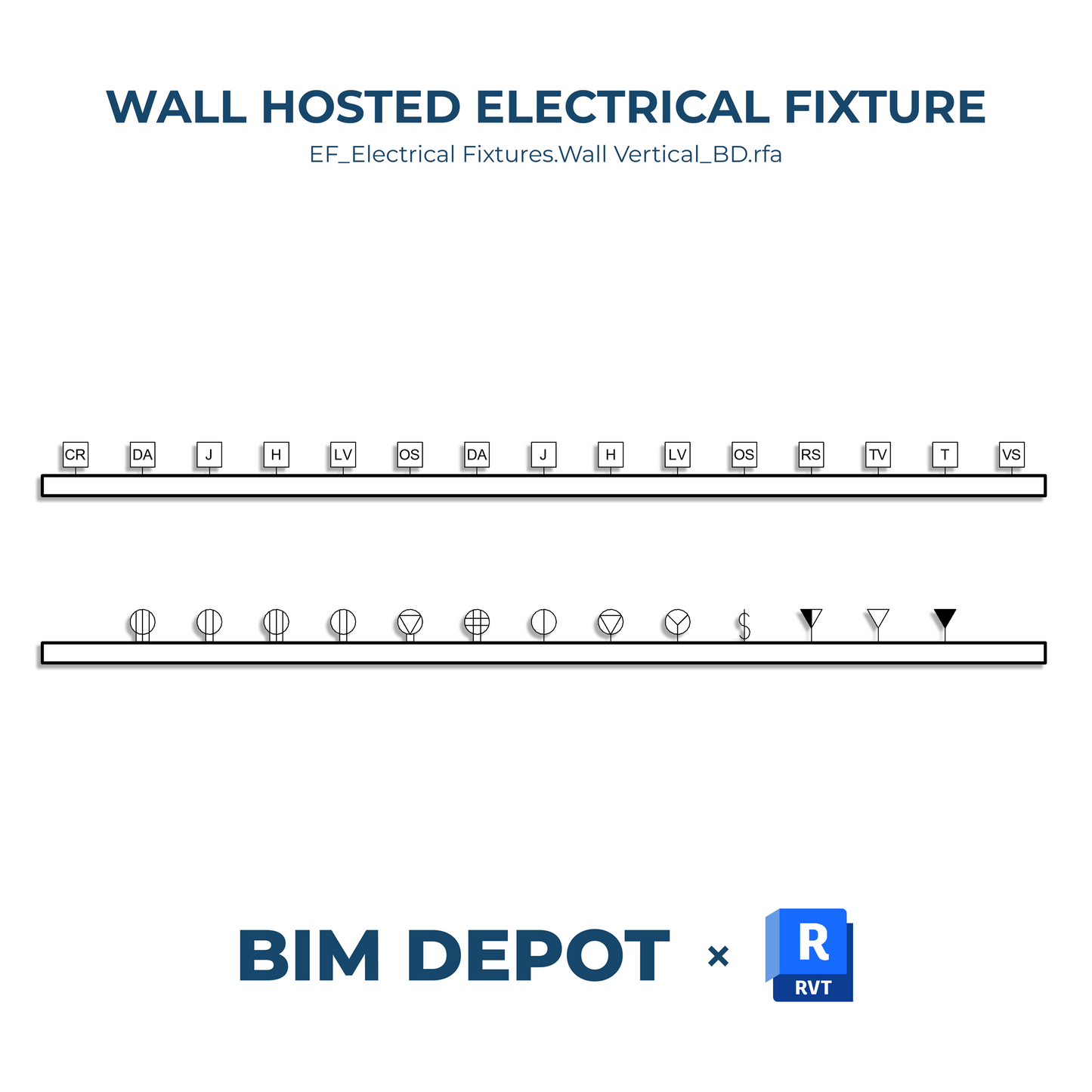

The BIM Depot Wall Hosted Electrical Fixture Family for Autodesk® Revit® is flexible to fix all your electrical layout needs. The family is loaded with all the typical electrical, data, and AV symbols. The text symbol can be customized to any text characters that you need. Symbols can be stacked to show multiple devices in the same location, and sublabels can be added for special conditions. All the fixtures are also represented with a 3D object that shows for renderings and in elevation/section; the heights on the 3D object are synchronized with the height label that shows in plan.
