Full Height Wall Oven Cabinet - Revit Casework Family

Full Height Wall Oven Cabinet - Revit Casework Family

Exclusive Members Only Asset
Regular price Sale price $9 USD
Sale Sold out
System of Measurement

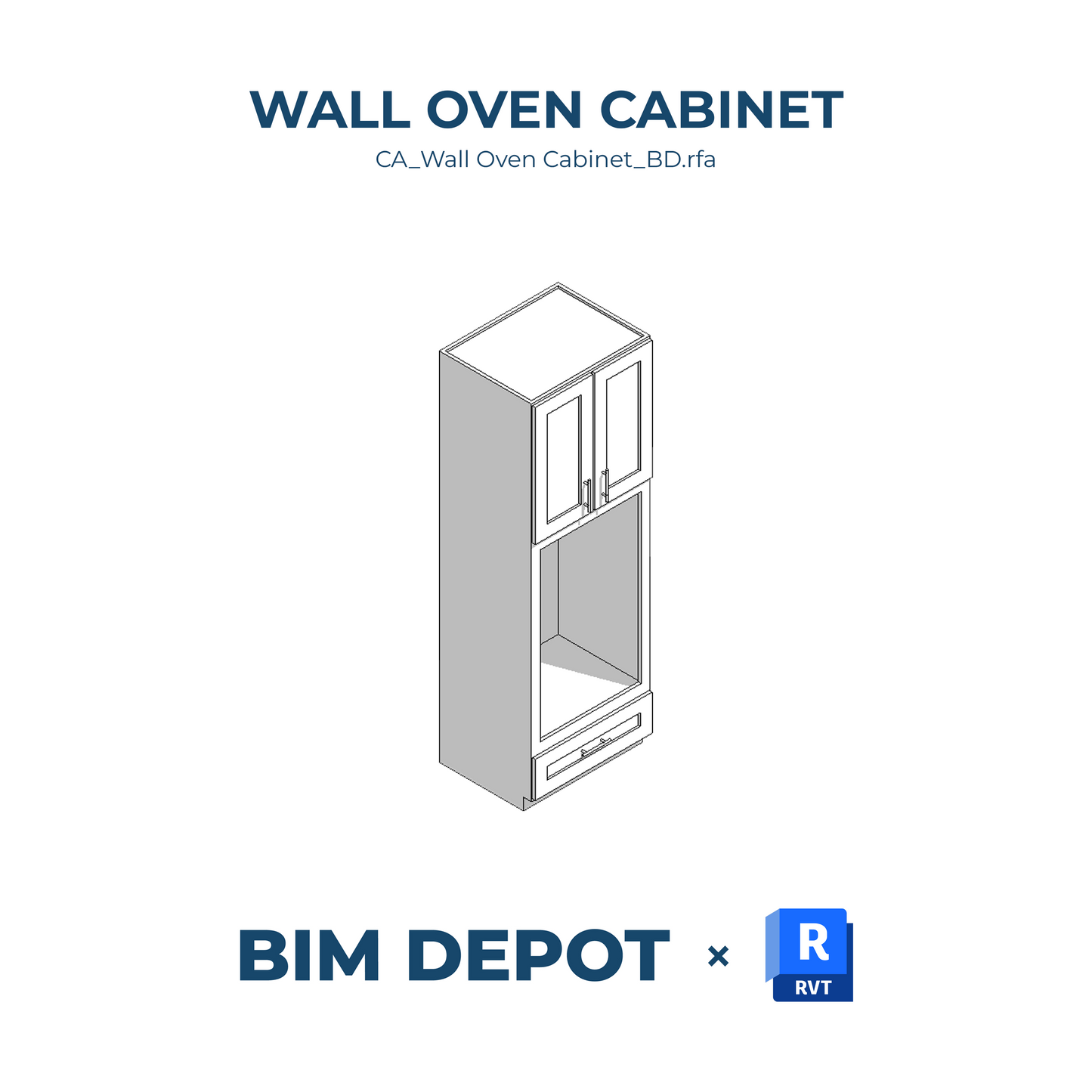

This Full Height Wall Oven Cabinet Revit Family is purpose-built for kitchen layouts that integrate built-in appliances. Designed to house single or double wall ovens, this fully parametric tall cabinet offers flexibility, clean documentation, and appliance-ready geometry that aligns with real-world standards.

Product Features

  • Fully parametric: adjustable height, width, depth, and oven opening dimensions
  • Oven cutout voids for single or double wall oven configurations
  • Symbolic linework for plan and elevation clarity
  • Properly categorized under Casework with subcategory control for visibility and lineweights
  • Material parameters included for rendering and scheduling

Use Cases

  • Kitchen appliance walls and built-in oven layouts
  • Custom residential and multi-family kitchens
  • Interior elevations, 3D views, and construction documents
  • Revit cabinet scheduling and coordination with appliance models
  • Modular kitchen systems with integrated storage and function

This oven cabinet is part of the BIM Depot Revit Family Collection — built for performance, consistency, and Revit-native functionality. Perfect for designers, architects, and BIM managers seeking a professional-grade solution for modern kitchens.

Pro Tip: Pair with BIM Depot’s refrigerator panels, tall pantry cabinets, and base units for a fully integrated Revit kitchen appliance wall. Become a BIM Depot Member to gain full access to the entire collection of Revit Families.

Imperial & Metric versions compatible with Revit 2022 and newer.
