Grain Direction Symbol - Revit Detail Component Family

Grain Direction Symbol - Revit Detail Component Family

Exclusive Members Only Asset
Regular price Sale price $5 USD
Sale Sold out
Members Only! Click to join.

The Grain Direction Symbol – Revit Detail Component Family is a lightweight, 2D drafting tool used to indicate the orientation of a material’s grain in plan, section, and elevation views. This symbol is ideal for documenting the intended direction of materials such as wood veneer, glass, film, tile, paneling, and other finish surfaces in both architectural and interior drawings.

Product Features

  • 2D detail component optimized for elevation, section, and plan views

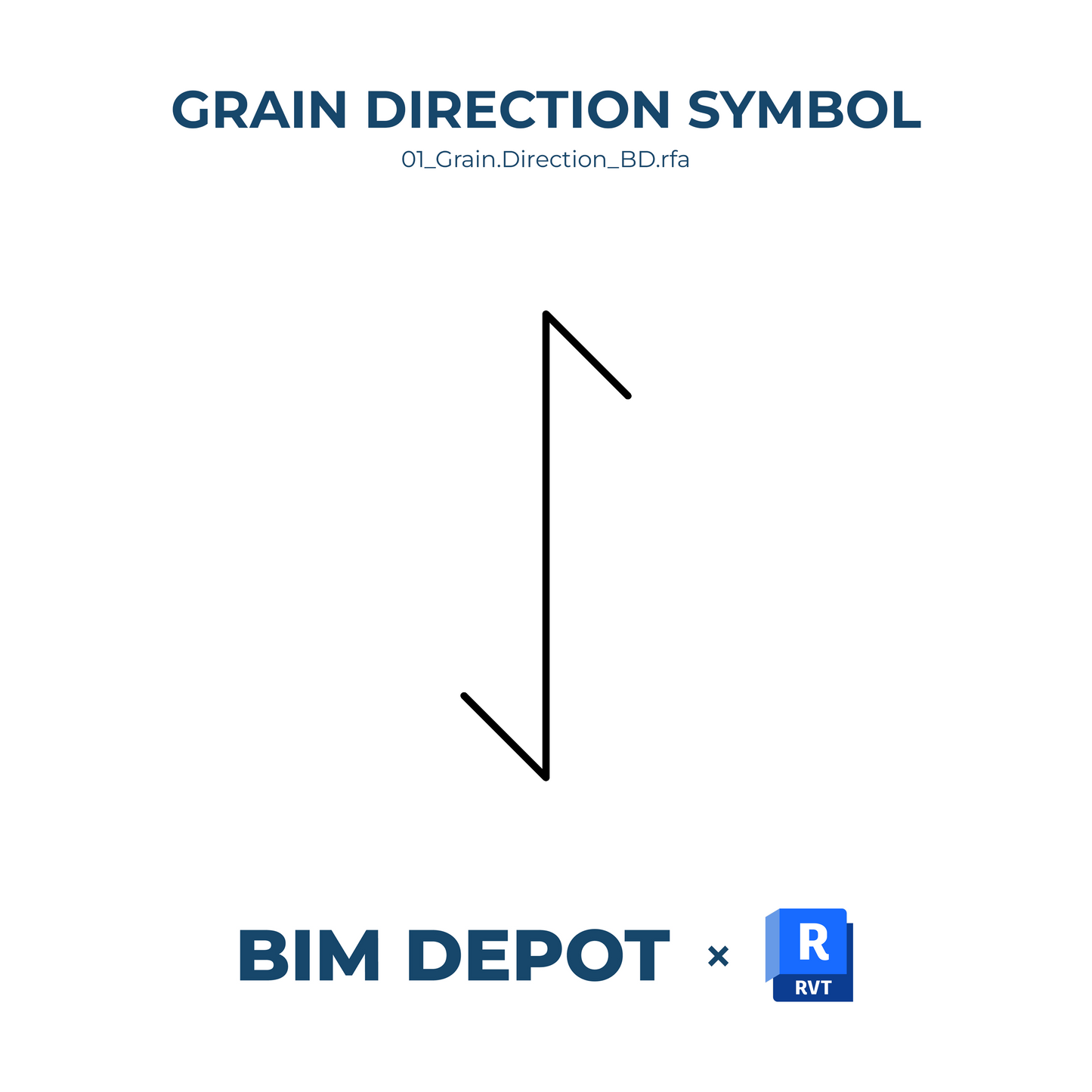

  • Simple arrow graphic to clearly show grain direction
  • Clean, symbolic linework that conforms to architectural drafting standards
  • Rotatable and scalable for flexible placement on various surfaces
  • Categorized under Detail Components for easy placement and visibility control

Use Cases

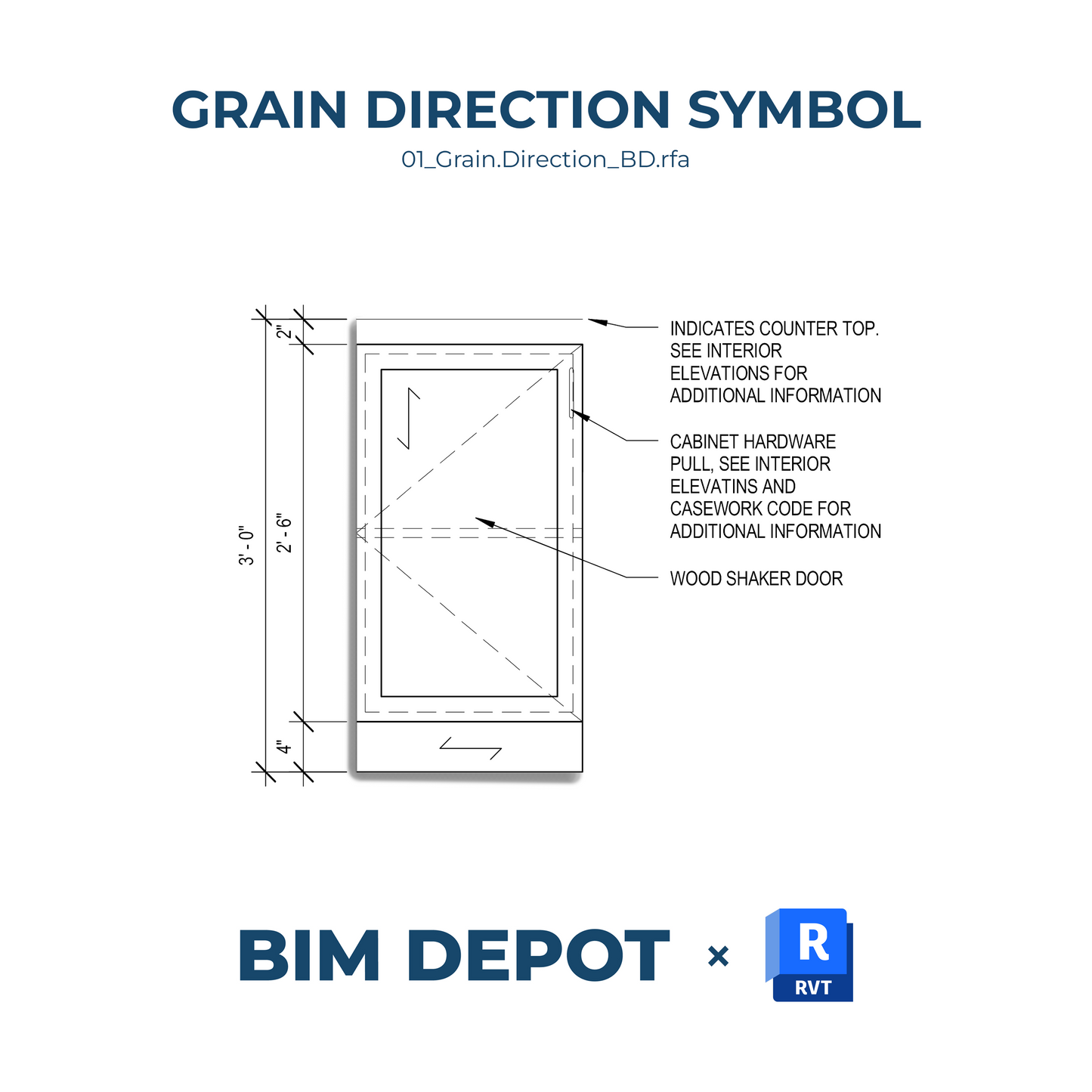

  • Wood veneer grain orientation on cabinetry, wall panels, and millwork
  • Glass film or patterned panel direction in curtain wall elevations
  • Tile layout orientation for walls, floors, and backsplashes
  • Material coordination in interior elevations and finish details
  • Shop drawing and fabrication documentation support

Part of the BIM Depot Detail Component Library, this grain direction symbol ensures your Revit documentation clearly communicates material intent to fabricators, contractors, and consultants. Built for clarity and speed, it's an essential tool for precision-driven detailing.

Pro Tip: Use multiple instances across wall panels, casework, and flooring details to ensure coordinated grain direction throughout your project. Become a BIM Depot Member to gain full access to the entire collection of Revit Families.

Imperial & Metric versions compatible with Revit 2024 and newer.

View full details

NOTE: BIM Depot does not provide access to or license for the software. BIM Depot solely provides the asset described in the product description.
