Insulation Netting - Revit Detail Component Family

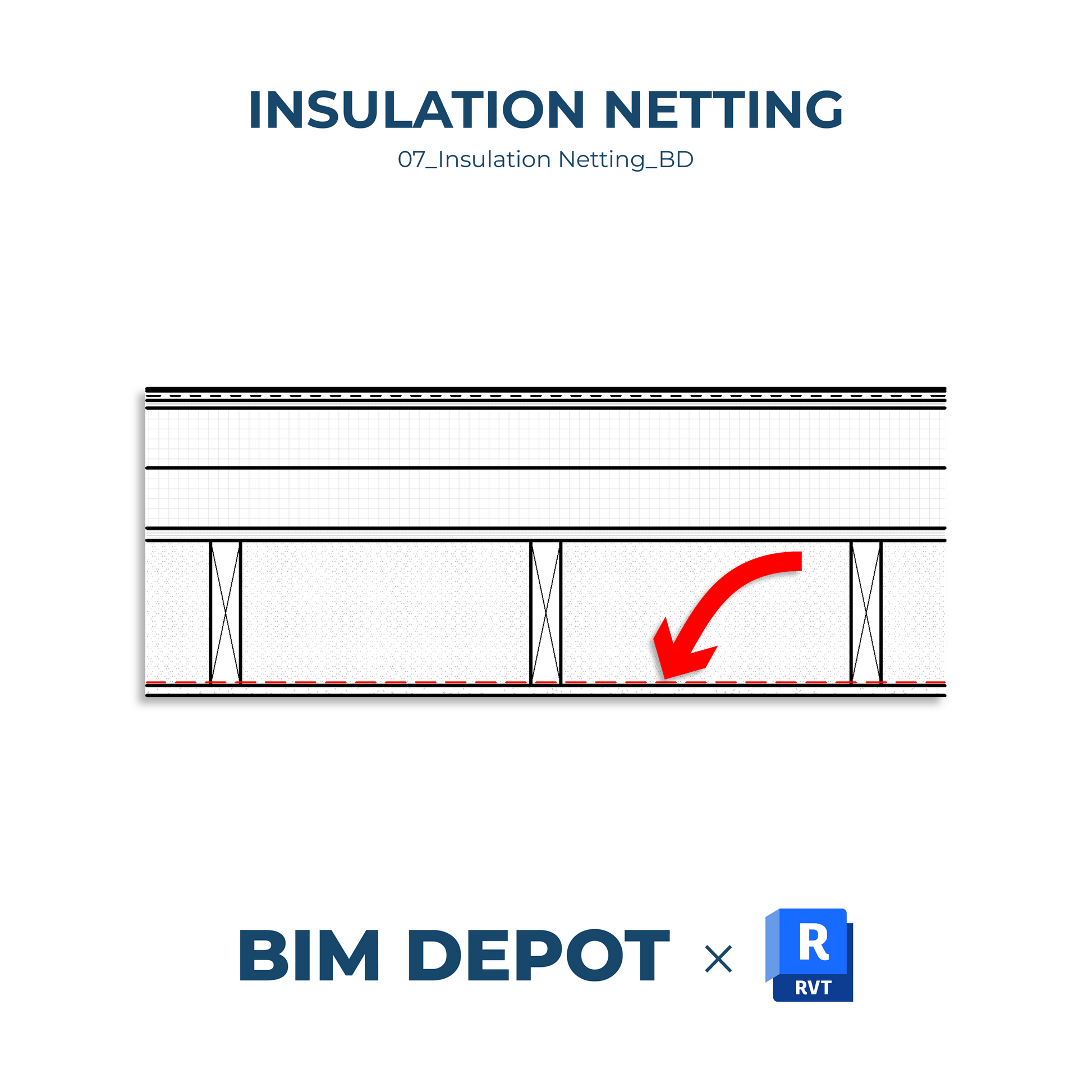

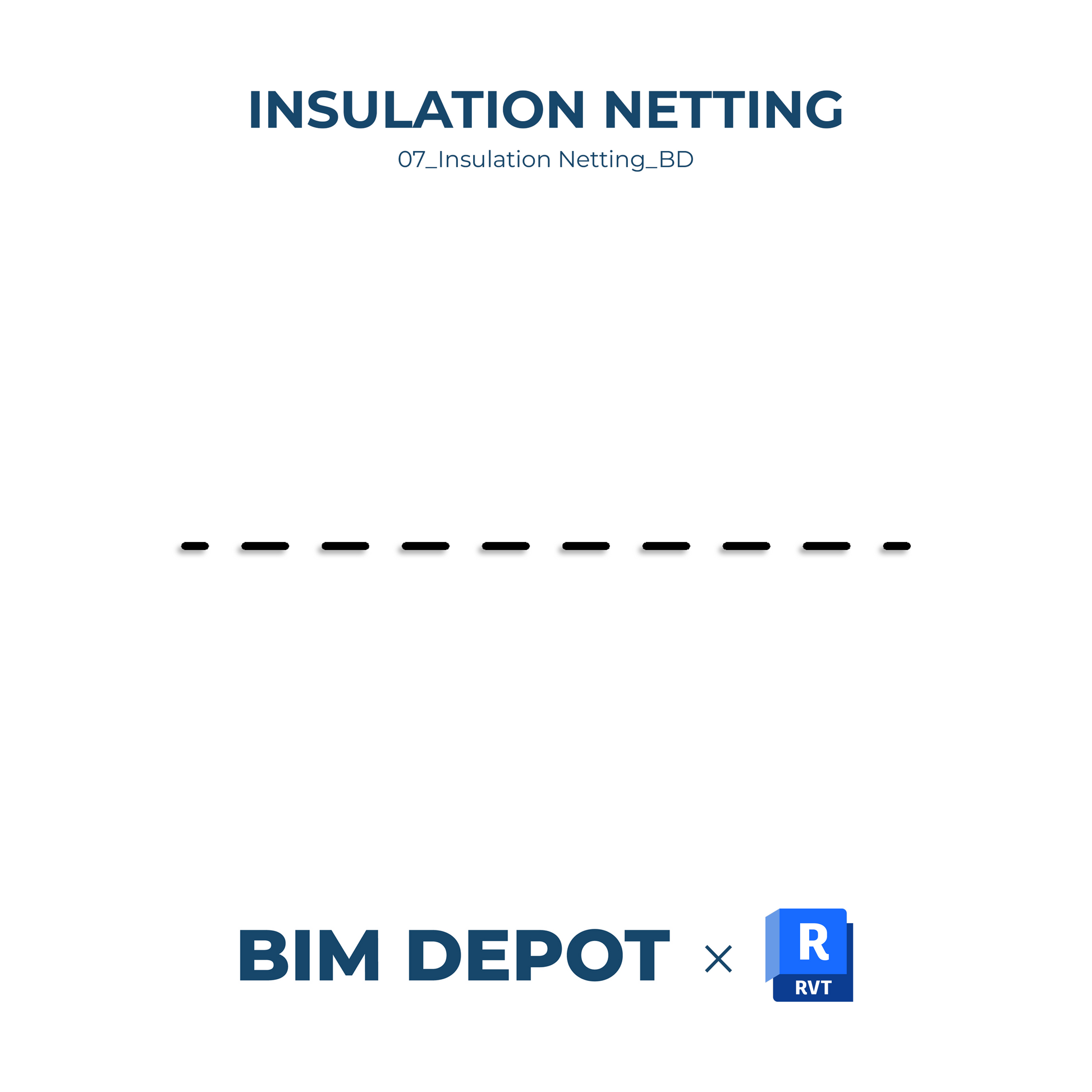

Improve the accuracy of your Revit construction details with this Insulation Netting detail component, designed to represent netting used with blown-in or dense-pack cellulose insulation systems. This family clearly communicates how insulation is retained within wall, ceiling, and roof cavities—ideal for energy-efficient and high-performance building assemblies.

Whether you're detailing residential or commercial assemblies, this component adds clarity and realism to your section drawings. Save time and maintain graphic consistency across your construction documents.

• Ideal for cellulose or dense-pack insulation systems
• Clean, scalable linework optimized for Revit details
• Easily placed in wall, roof, or ceiling sections
• Supports energy-efficient and sustainable design documentation
• Works seamlessly with other insulation and framing families

Perfect for architects, designers, and construction professionals detailing insulation assemblies in Revit.

Revit 2022, Revit 2023, Revit 2024, Revit 2025, Revit 2026  |  Imperial
