BIM Depot

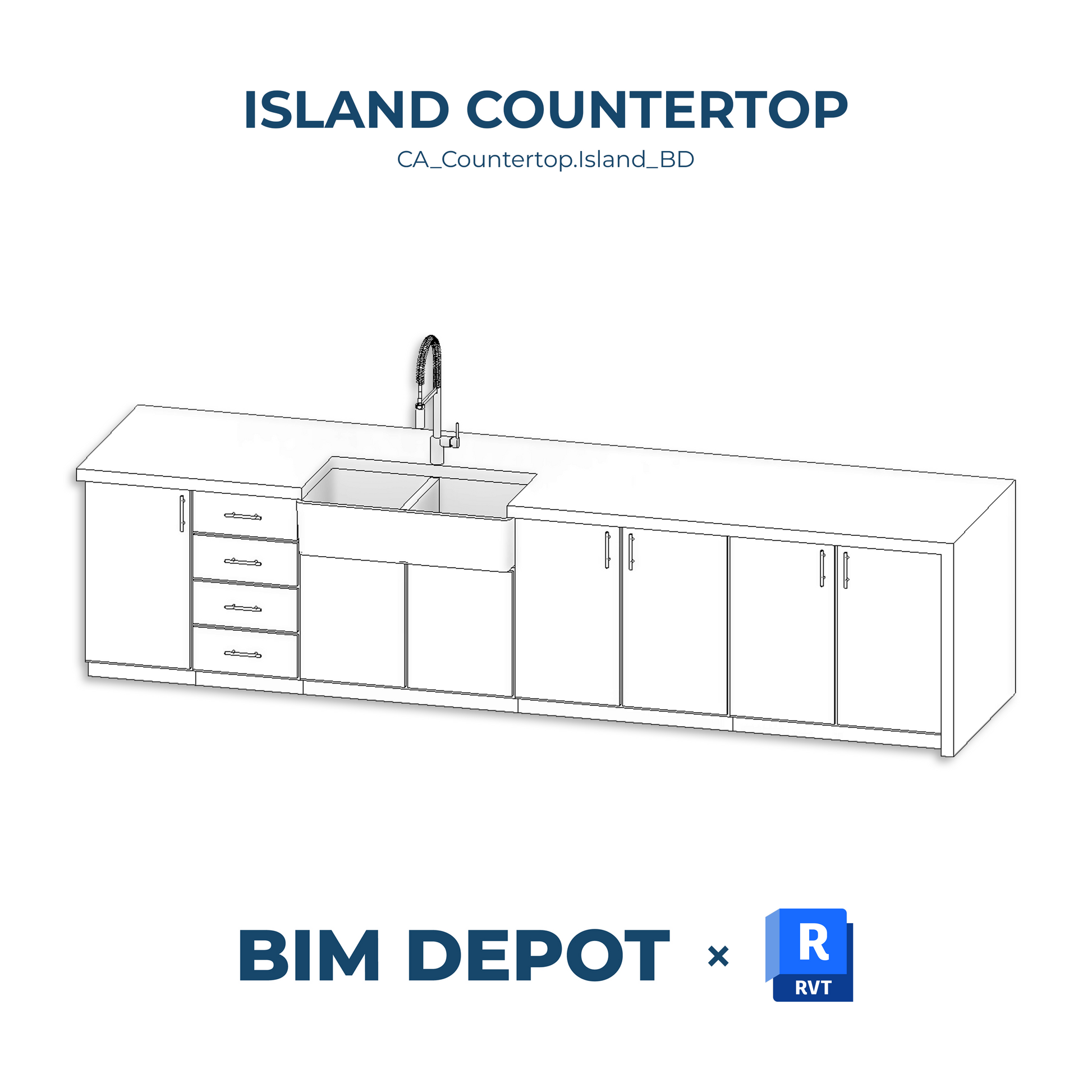

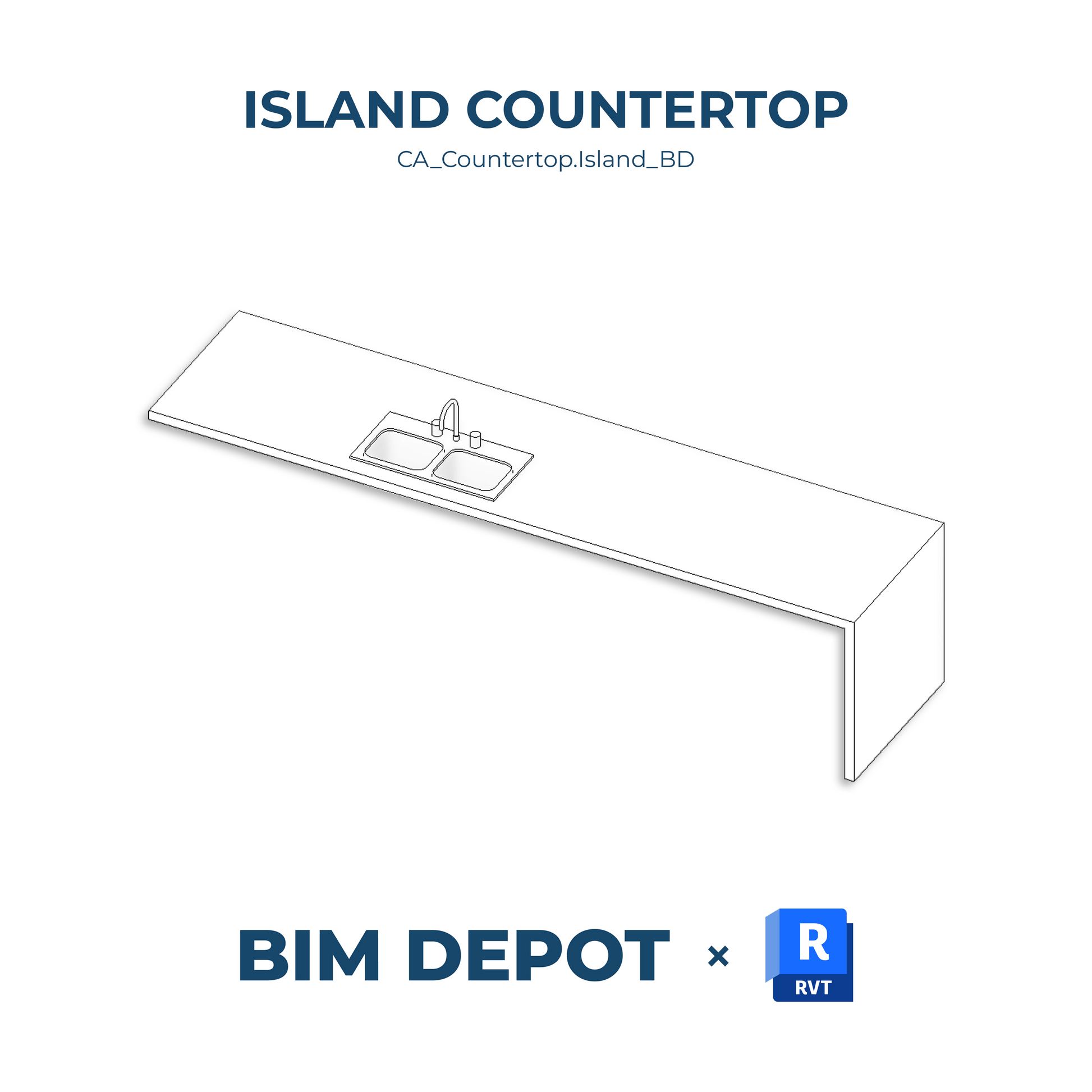

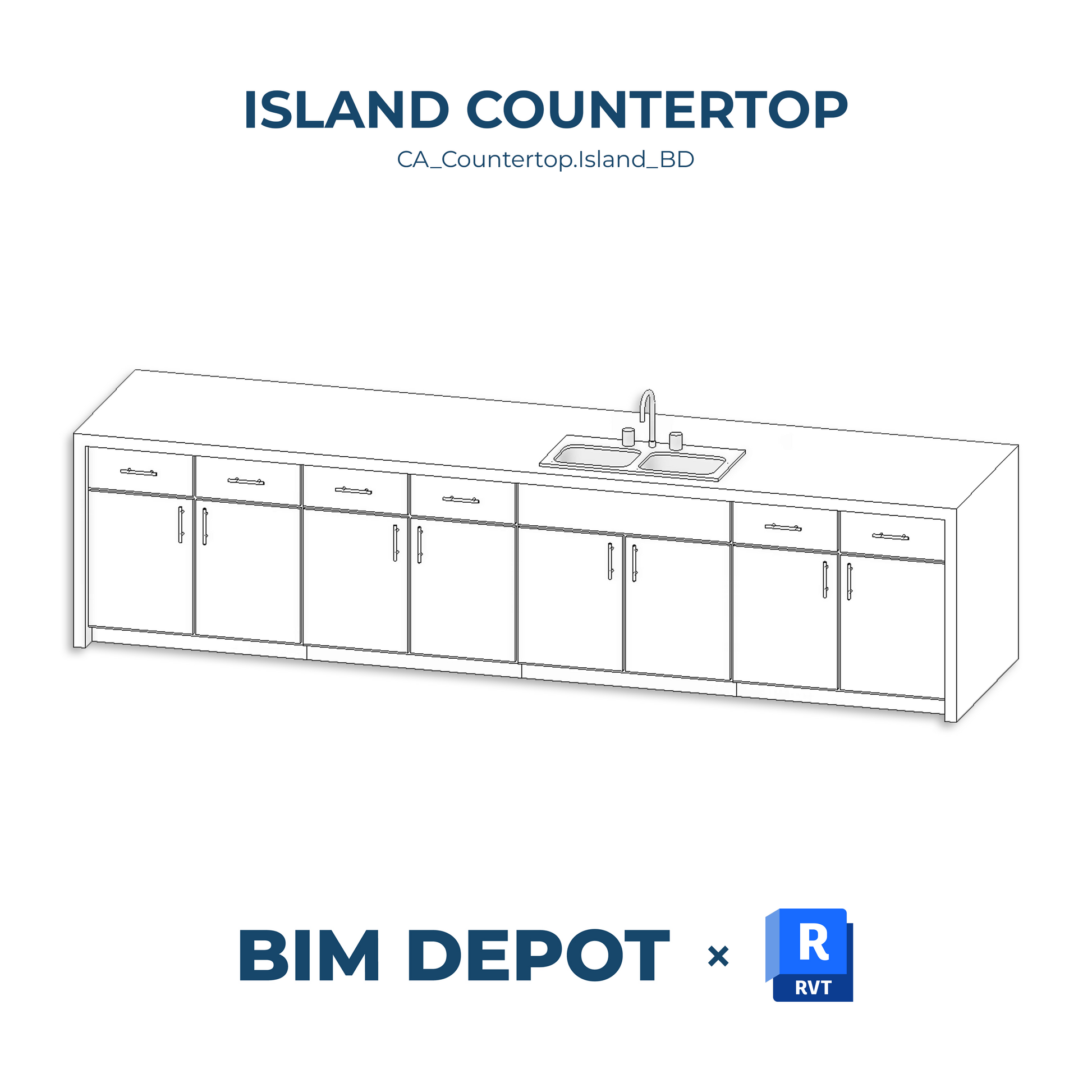

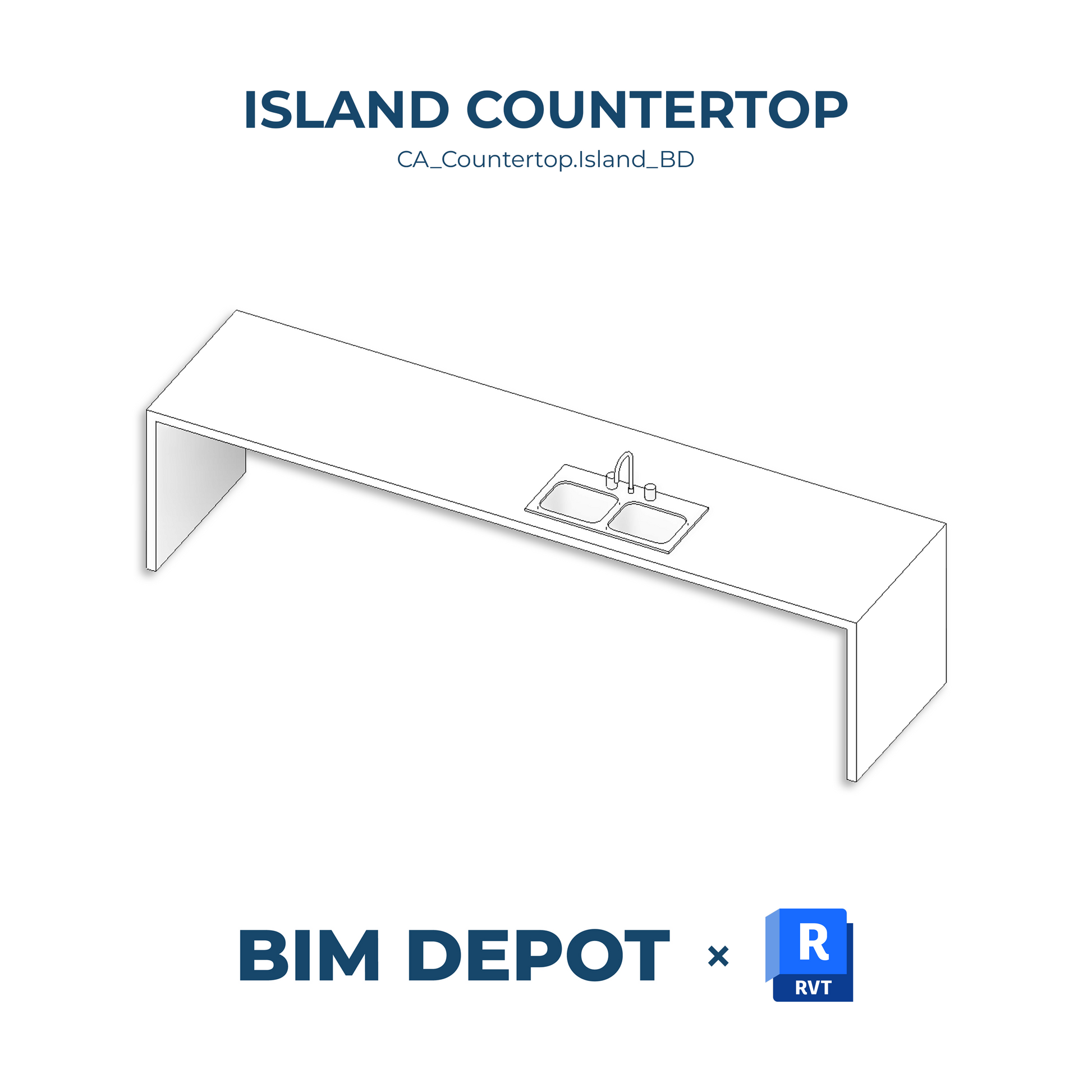

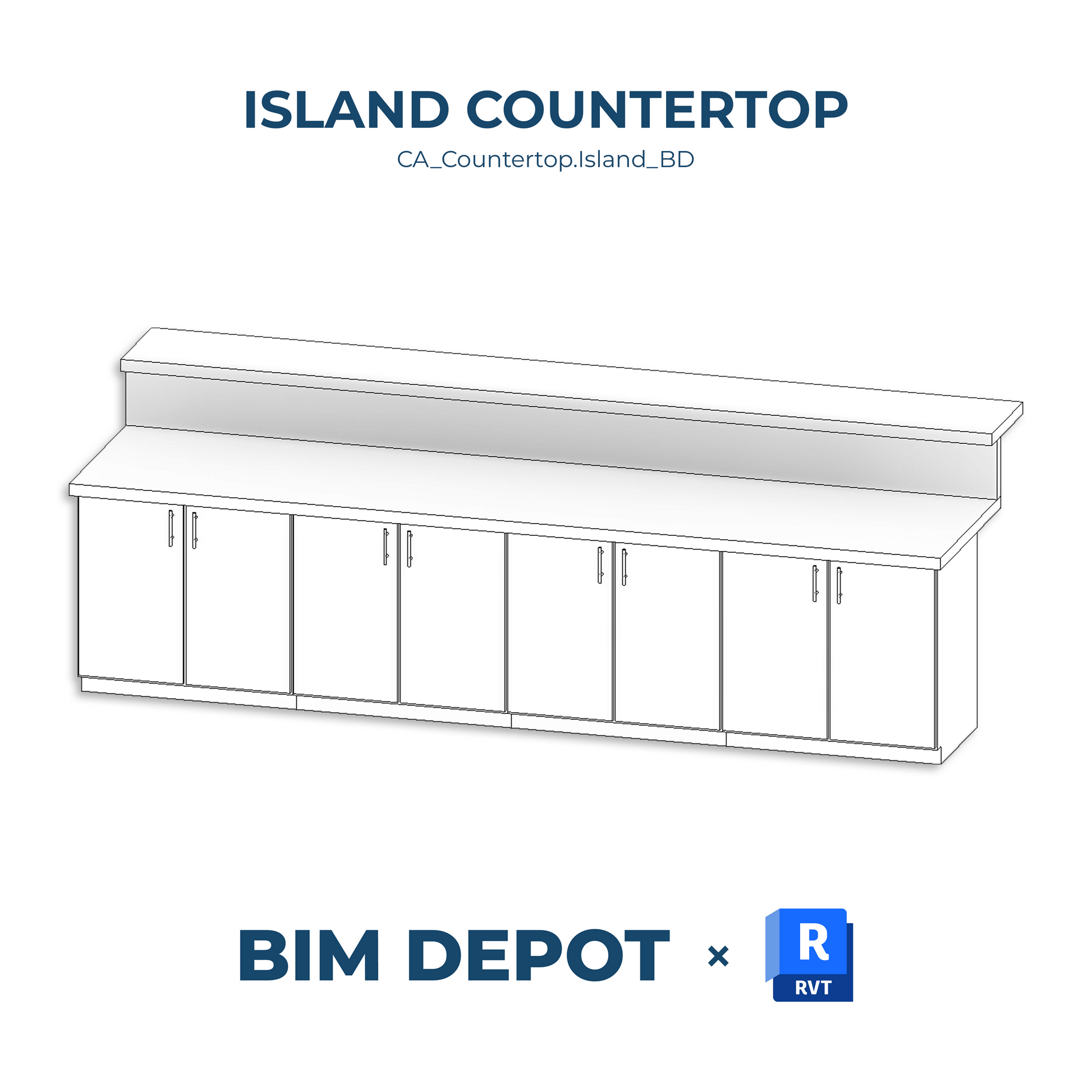

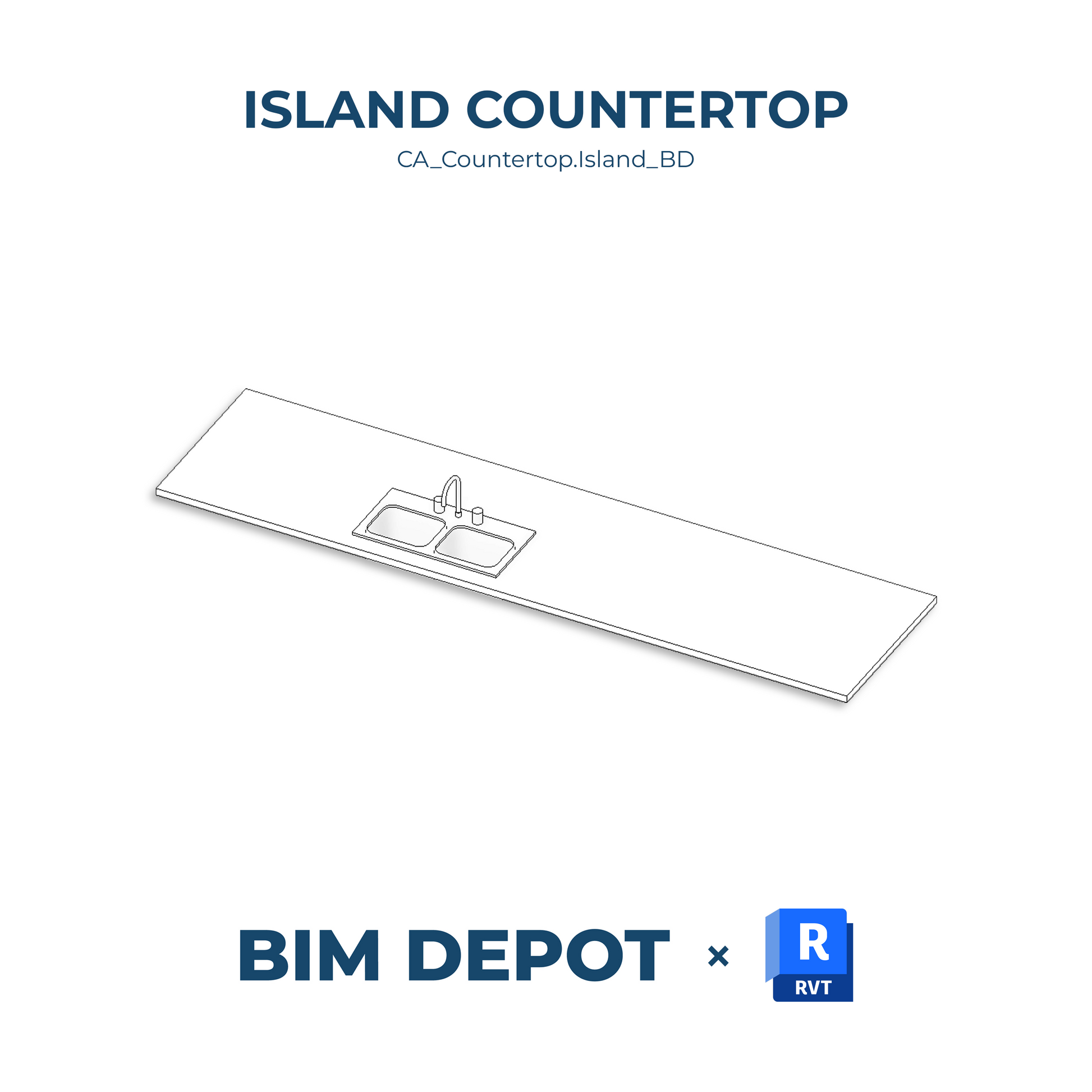

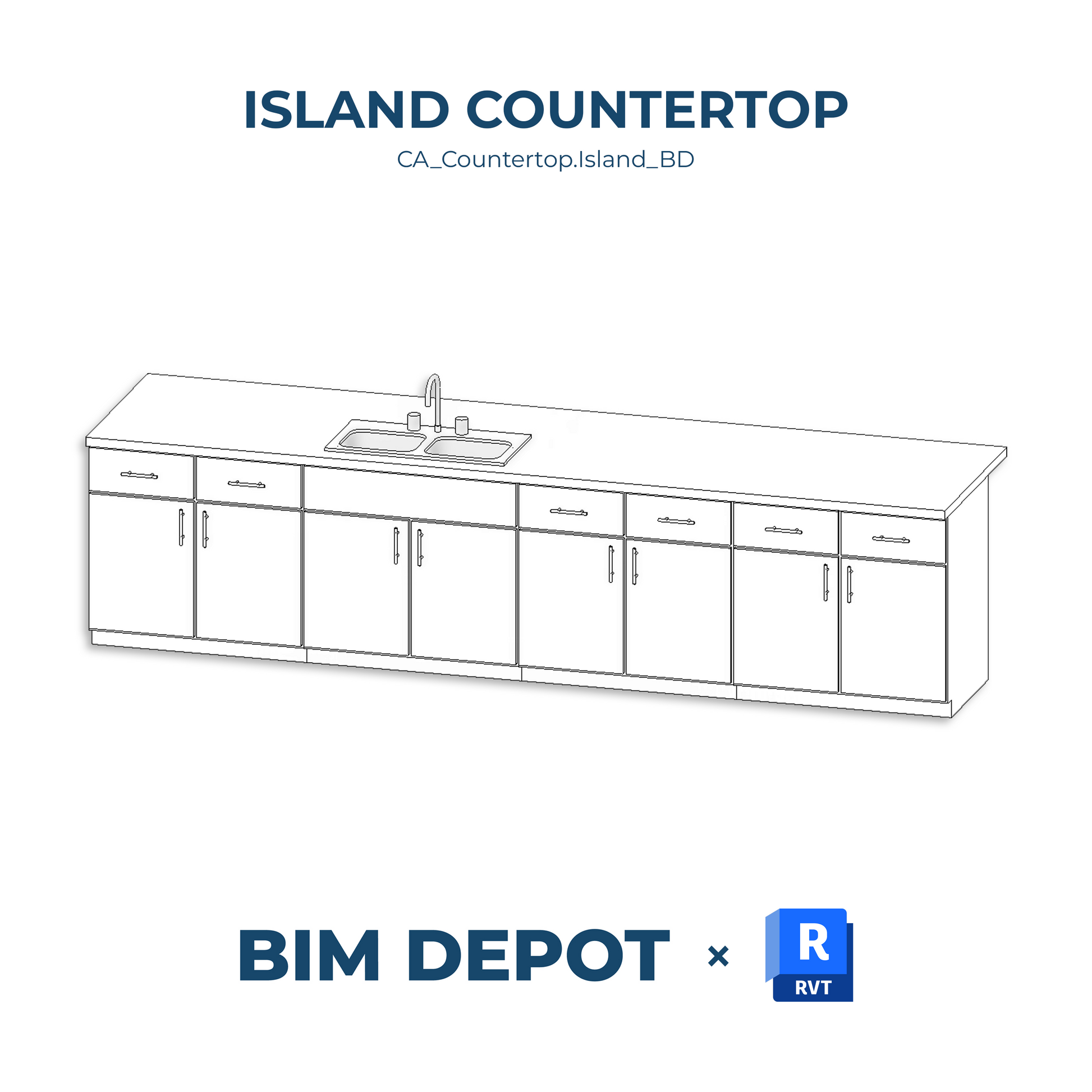

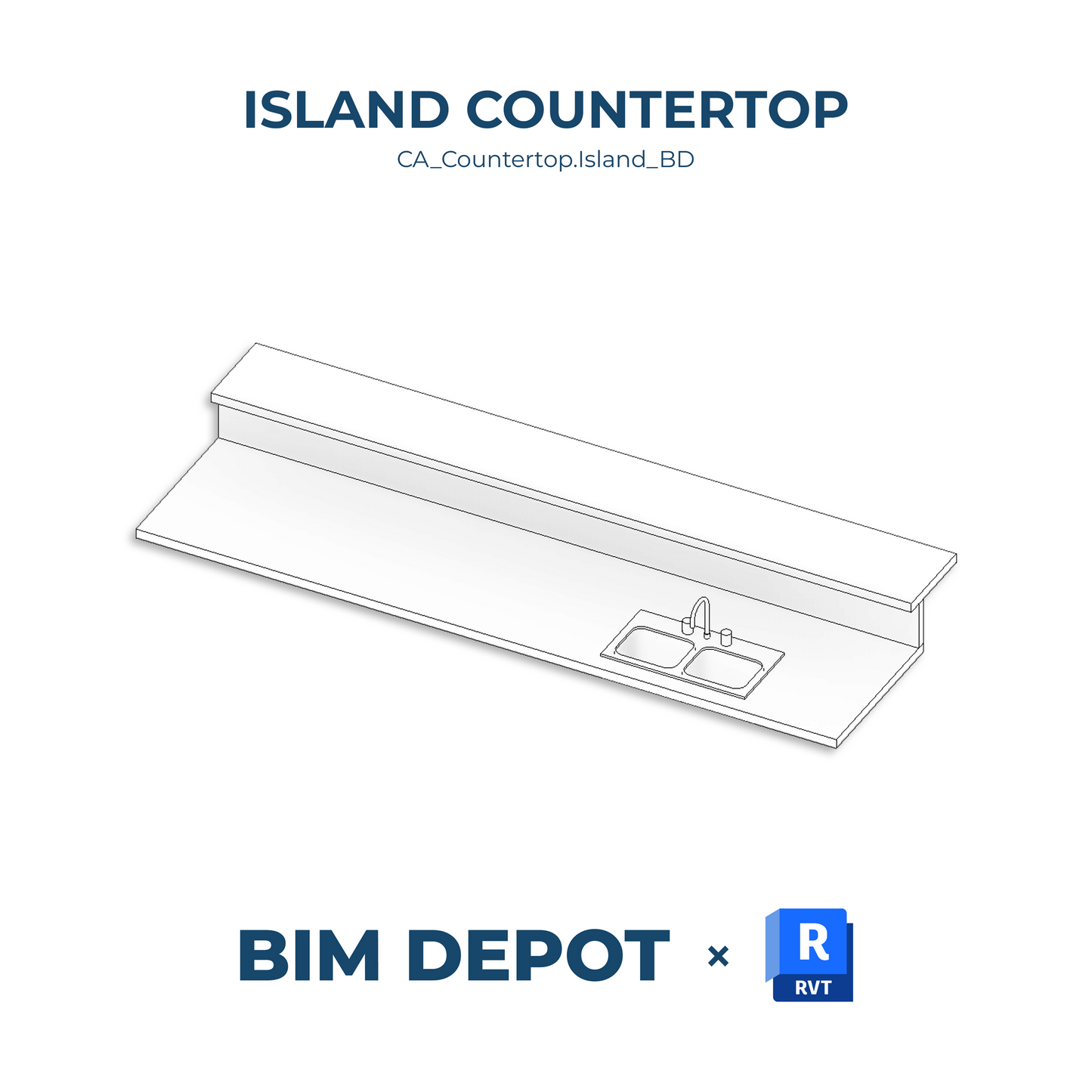

Island Countertop - Revit Casework Family

Island Countertop - Revit Casework Family

Exclusive Members Only Asset
Regular price Sale price $9 USD
Sale Sold out
System of Measurement

The Island Countertop Family is a fully parametric component designed for standalone countertop applications in kitchens, workrooms, and commercial interiors. Built for flexibility and fast placement, this family allows you to define length, depth, thickness, and overhangs, making it ideal for custom kitchen islands, break stations, and reception desks.

Product Features

  • Fully parametric with adjustable dimensions and overhangs
  • Clean symbolic linework for plan views and refined 3D geometry for elevations and perspectives
  • Material parameters for realistic rendering and cost estimation
  • Assigned to the Casework category with subcategories for visibility control
  • Compatible with Revit base cabinet families and standalone casework designs
  • Lightweight and optimized for design, documentation, and visualization workflows

Use Cases

  • Residential and multi-family kitchen islands
  • Commercial break rooms, labs, or checkout counters
  • Hospitality bars, buffets, and service stations
  • Interior elevations, 3D views, and construction documentation
  • Flexible countertop design in modern or traditional layouts

Part of the BIM Depot Casework Collection, this island countertop delivers fast, clean, and flexible modeling for complex interiors. Built to perform across all Revit views, it’s a go-to family for architects, interior designers, and BIM professionals.
