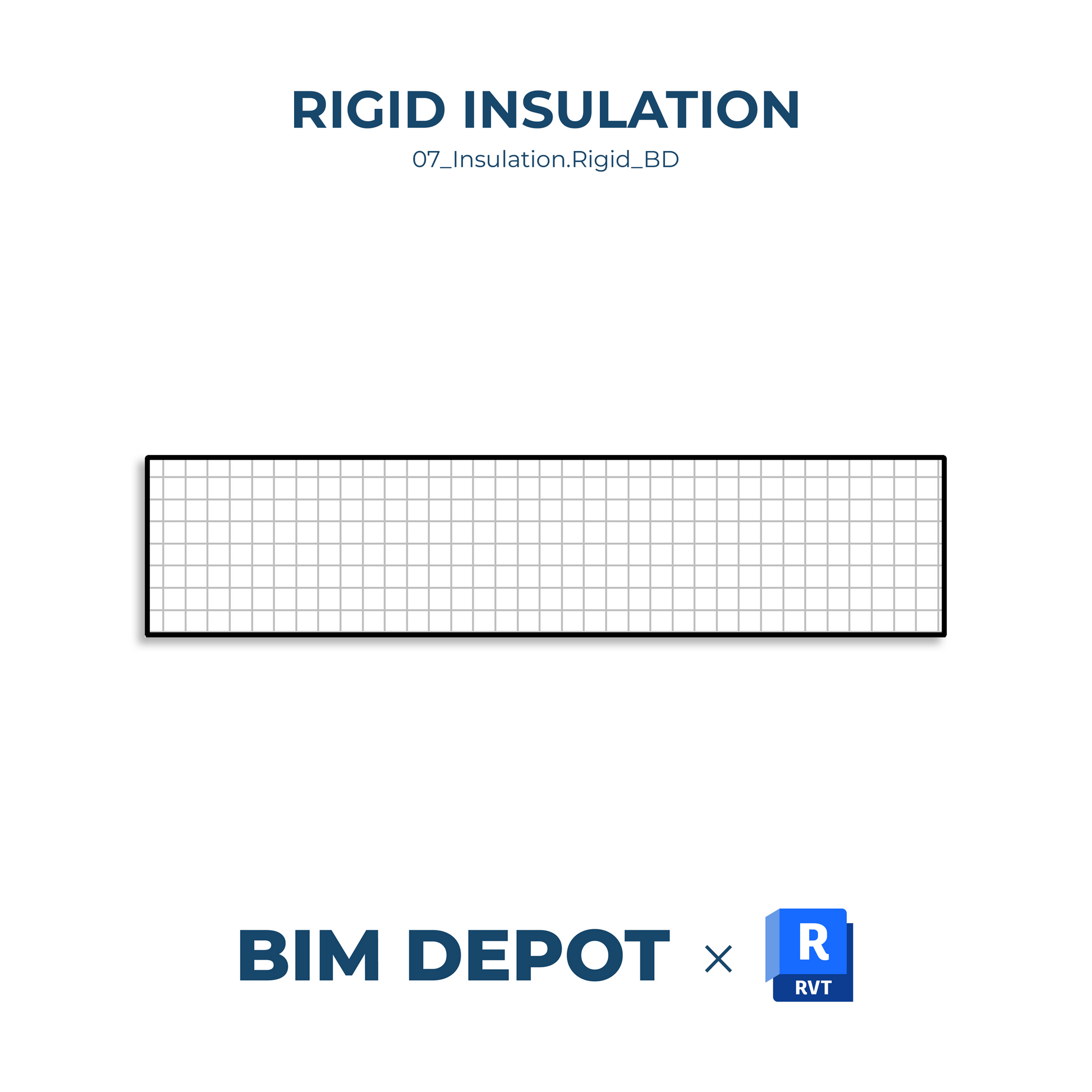

Rigid Insulation - Revit Detail Component Family

Add clarity and precision to your Revit details with this Rigid Insulation detail component, designed to represent foam board or continuous insulation products used in wall, roof, and foundation assemblies. Ideal for architectural sections and construction documents, this family ensures your detailing is both technically accurate and graphically consistent.

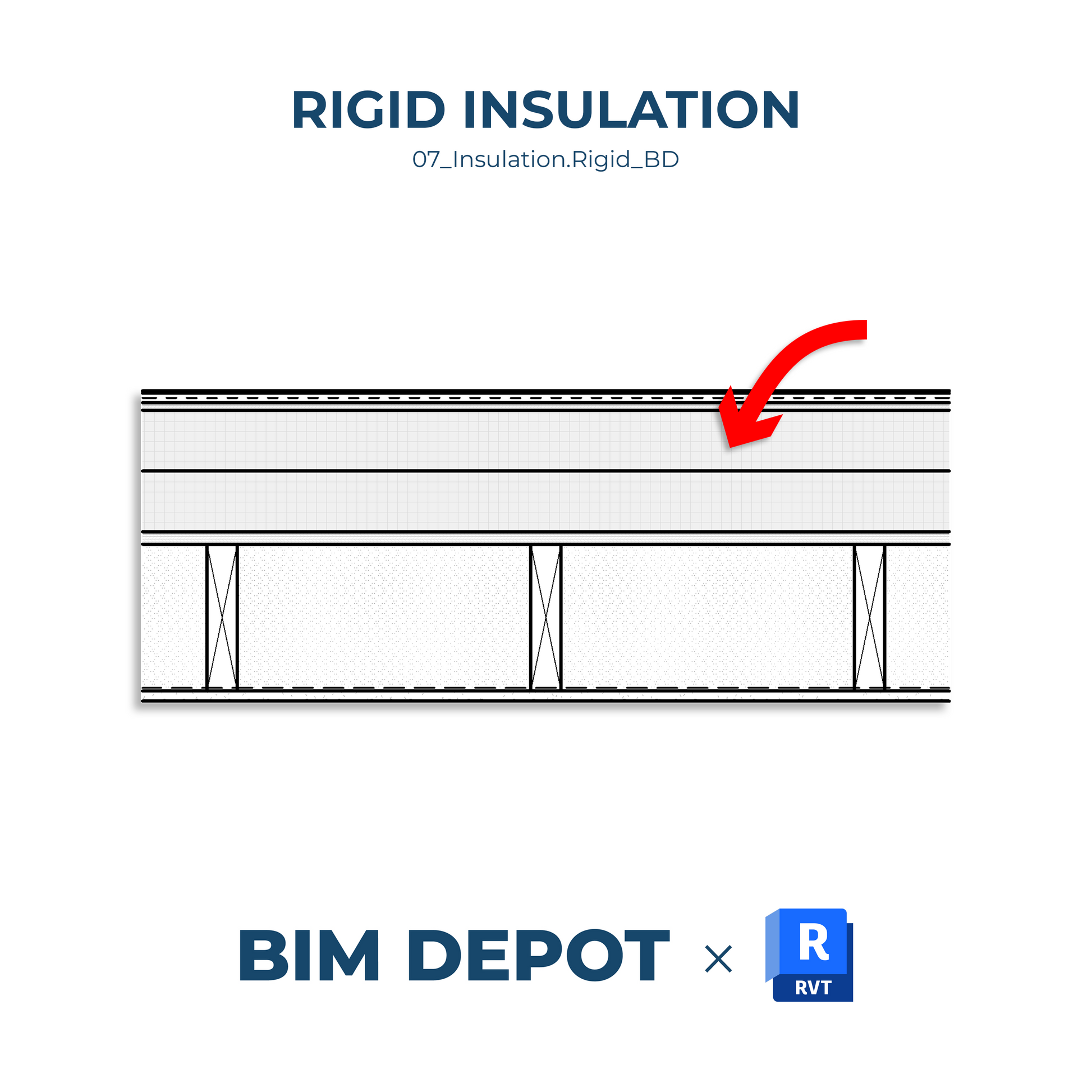

Use this component to illustrate exterior insulation, thermal breaks, or continuous insulation strategies in high-performance and code-compliant assemblies.

• Clean, scalable detail graphics optimized for Revit
• Suitable for walls, roofs, slabs, and foundation assemblies
• Perfect for illustrating continuous insulation in energy-efficient designs
• Easy to place and align with existing detail elements
• Compatible with all Revit templates and detail workflows

Built for architects, designers, and engineers who want to streamline detailing while enhancing clarity in construction documentation.

Revit 2022, Revit 2023, Revit 2024, Revit 2025, Revit 2026  |  Imperial
