Upgrade your Revit bathroom designs with this fully parametric Shower Stall Revit Family, built to handle every design scenario with ease and flexibility. Whether you’re modeling a compact residential bath or a high-end commercial suite, this family lets you customize every element, from enclosure style to drain type, without rebuilding geometry from scratch.
Key Features:

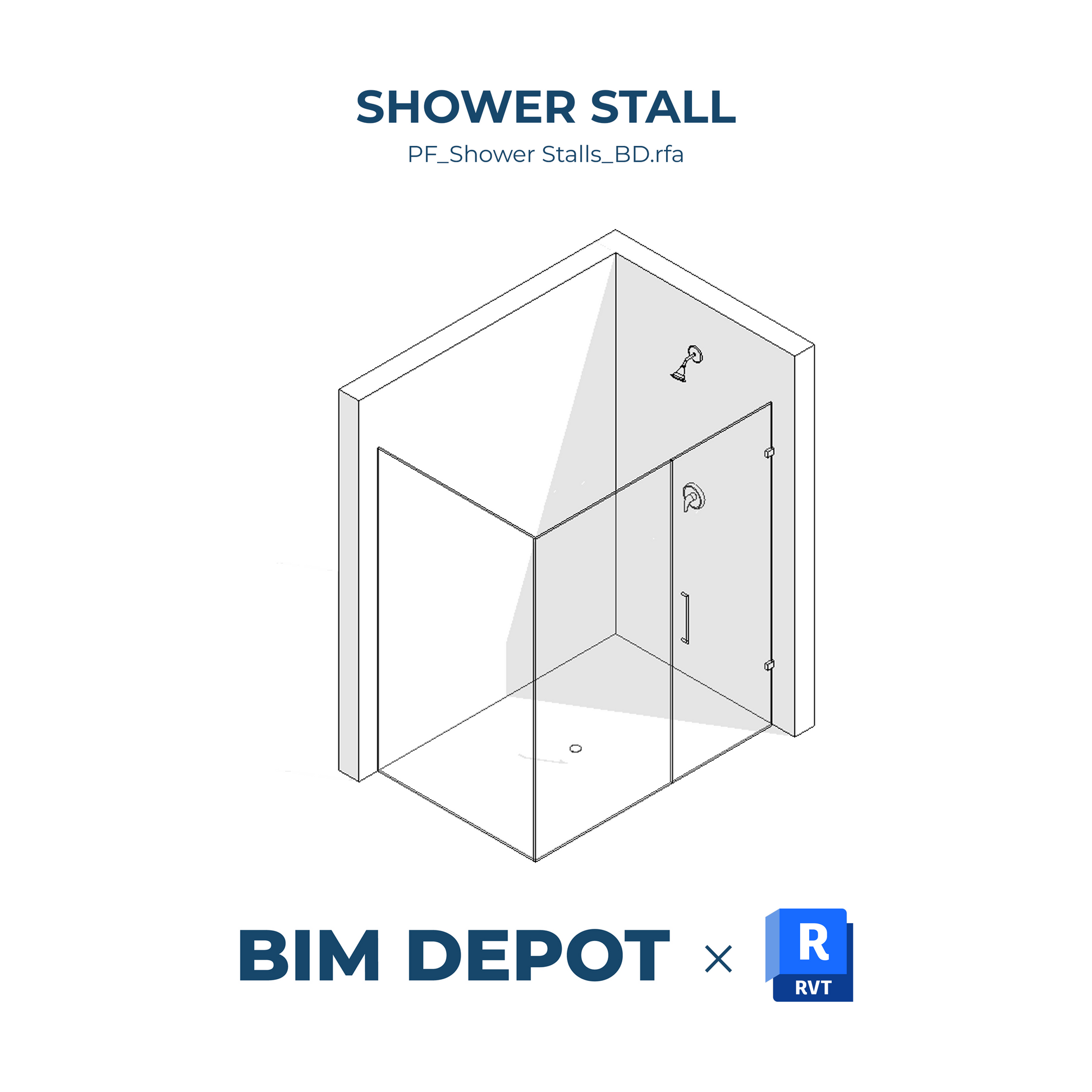

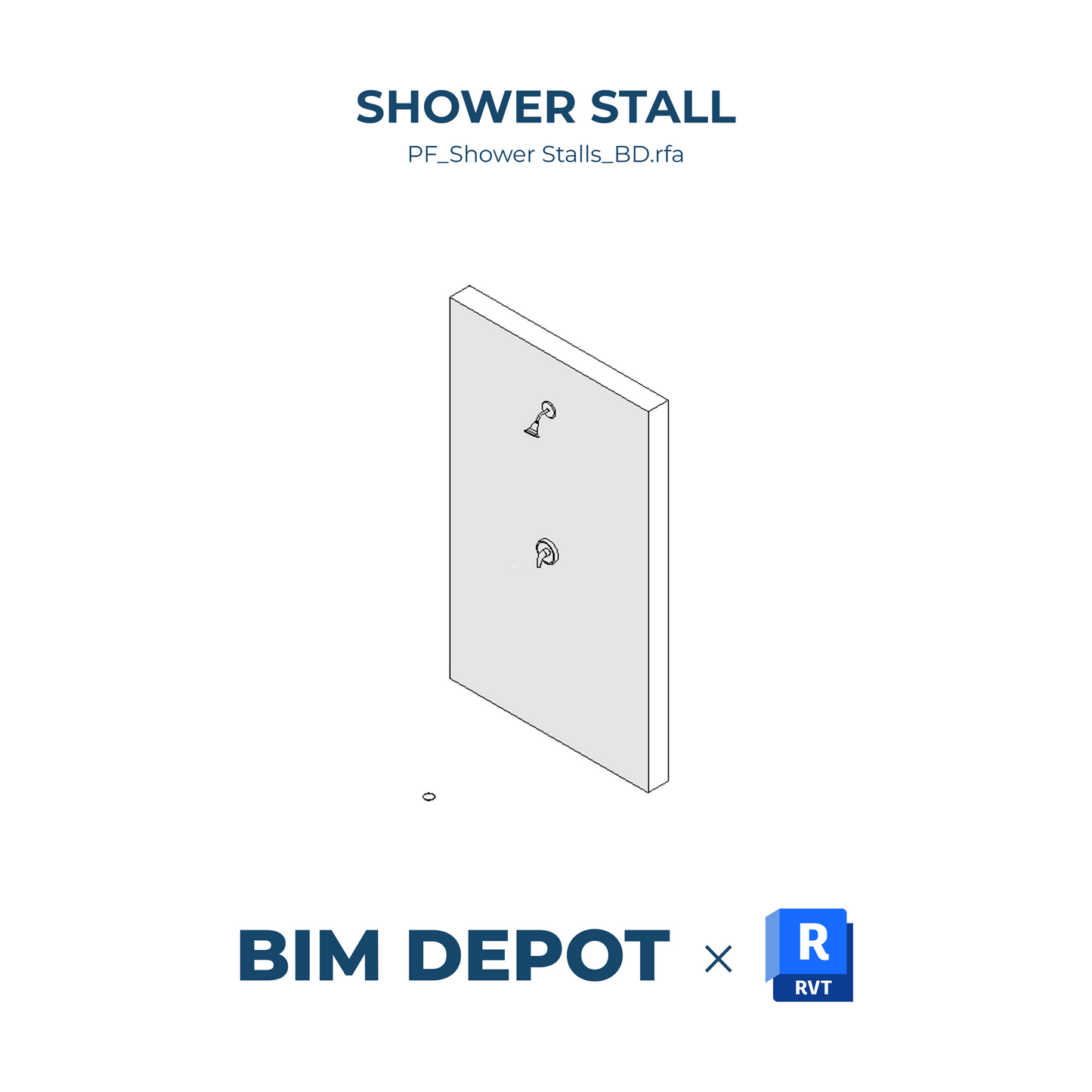

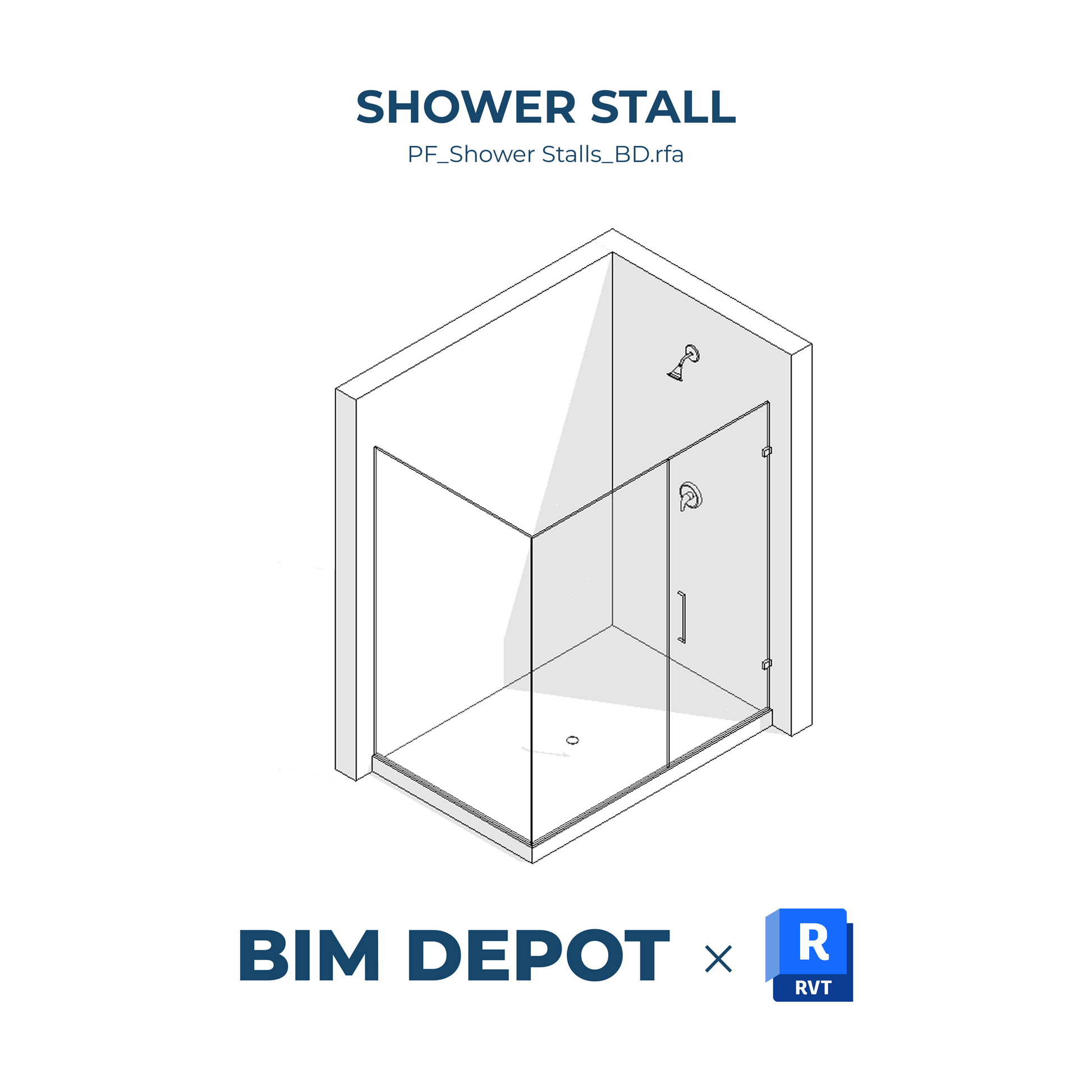

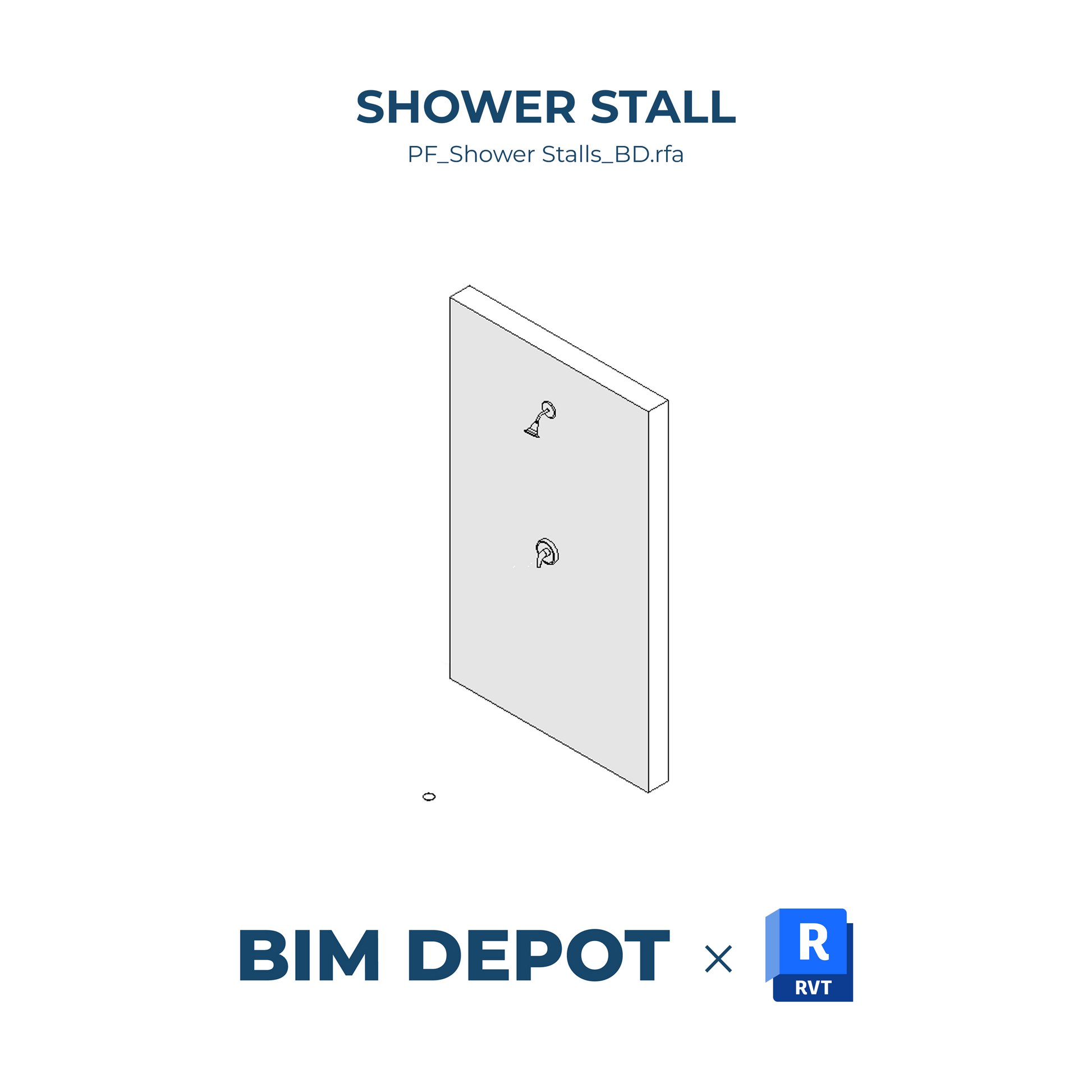

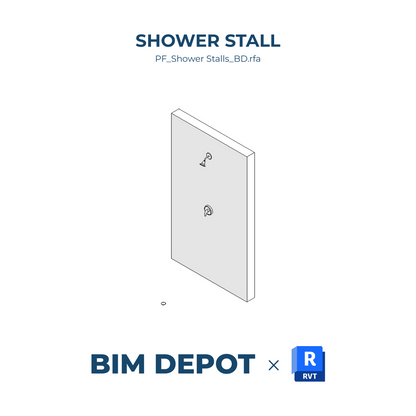

Configurable Glass Enclosures: Add glass on one, two, or three sides to match alcove, corner, or freestanding layouts.
Optional Door Placement: Easily toggle a glass door on or off and control its position.
Drain Options: Choose between two drain styles (center or linear) for realistic detailing and accurate documentation.
Fully Parametric Design: Adjust width, depth, height, curb height, and glass thickness for any project condition.
Built to BIM Depot Standards: Clean geometry, proper reference planes, and native materials ready for renderings and construction documents.

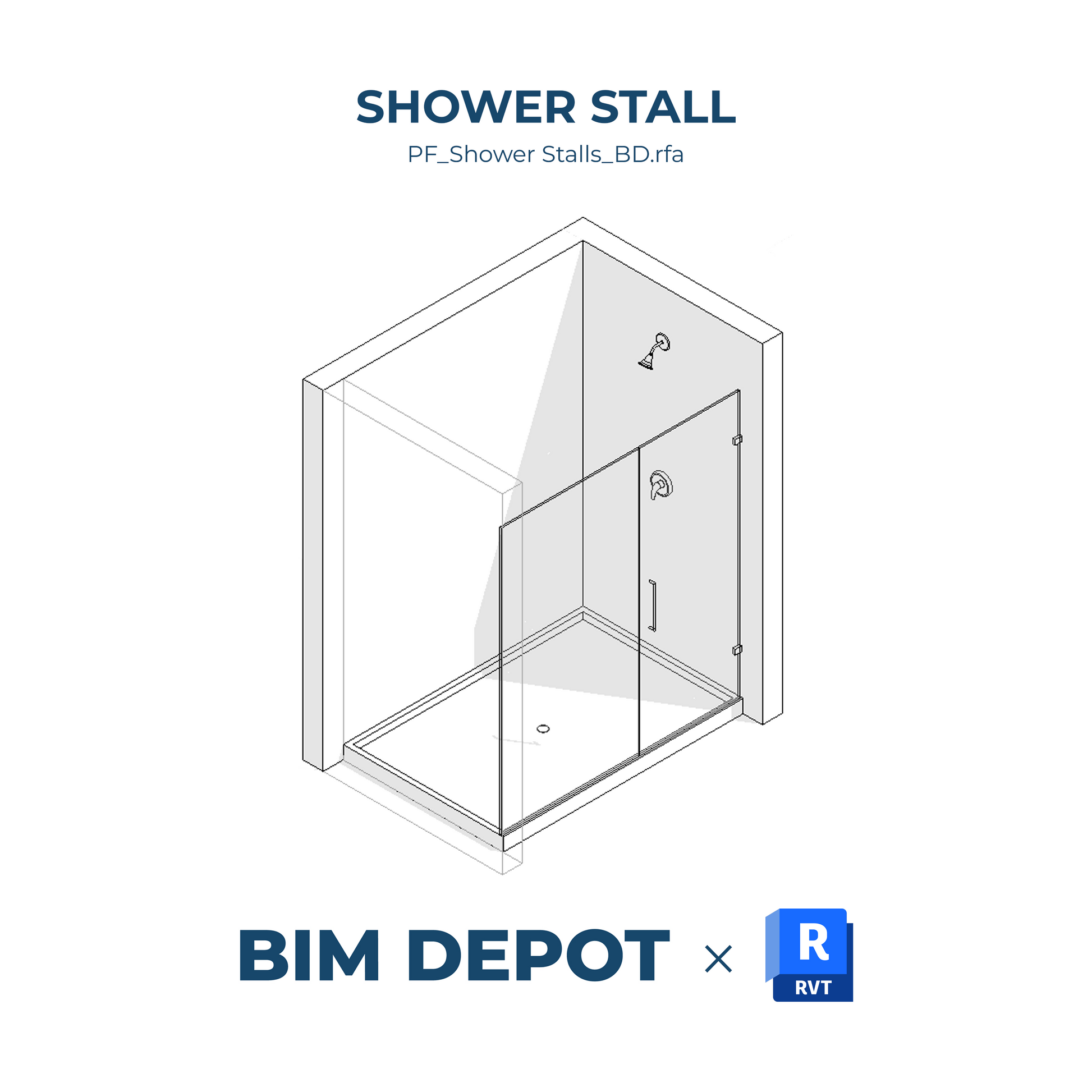

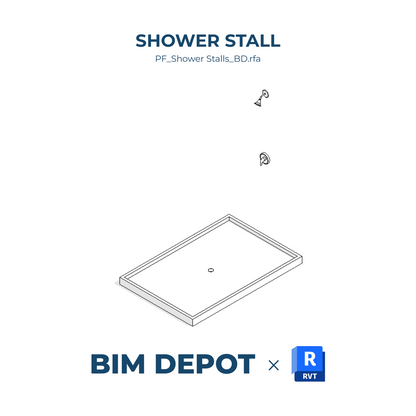

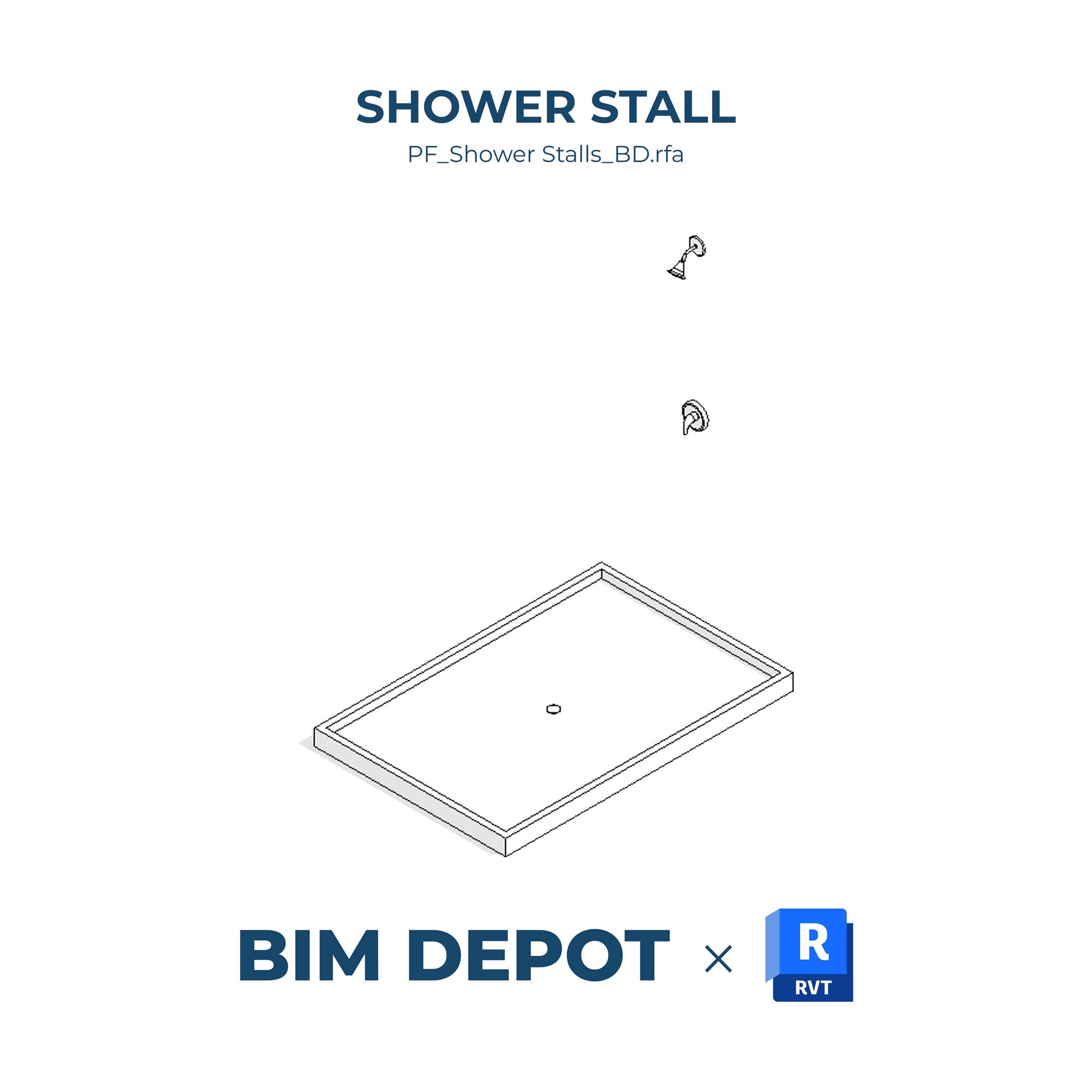

Optional Curbs: Built-in curbs that can be turned on/off.
Perfect For:
Residential & Commercial Bathroom Design
Interior Renderings & Client Presentations
Plumbing Fixture Schedules
Standardized Revit Templates & Family Libraries
Streamline your workflow with a single, intelligent shower stall family that adapts to every layout. Part of the BIM Depot Revit Family Collection — professional-grade content built to make Revit simple.
