Straight Countertop - Revit Casework Family

Straight Countertop - Revit Casework Family

Exclusive Members Only Asset
Regular price Sale price $9 USD
Sale Sold out
System of Measurement

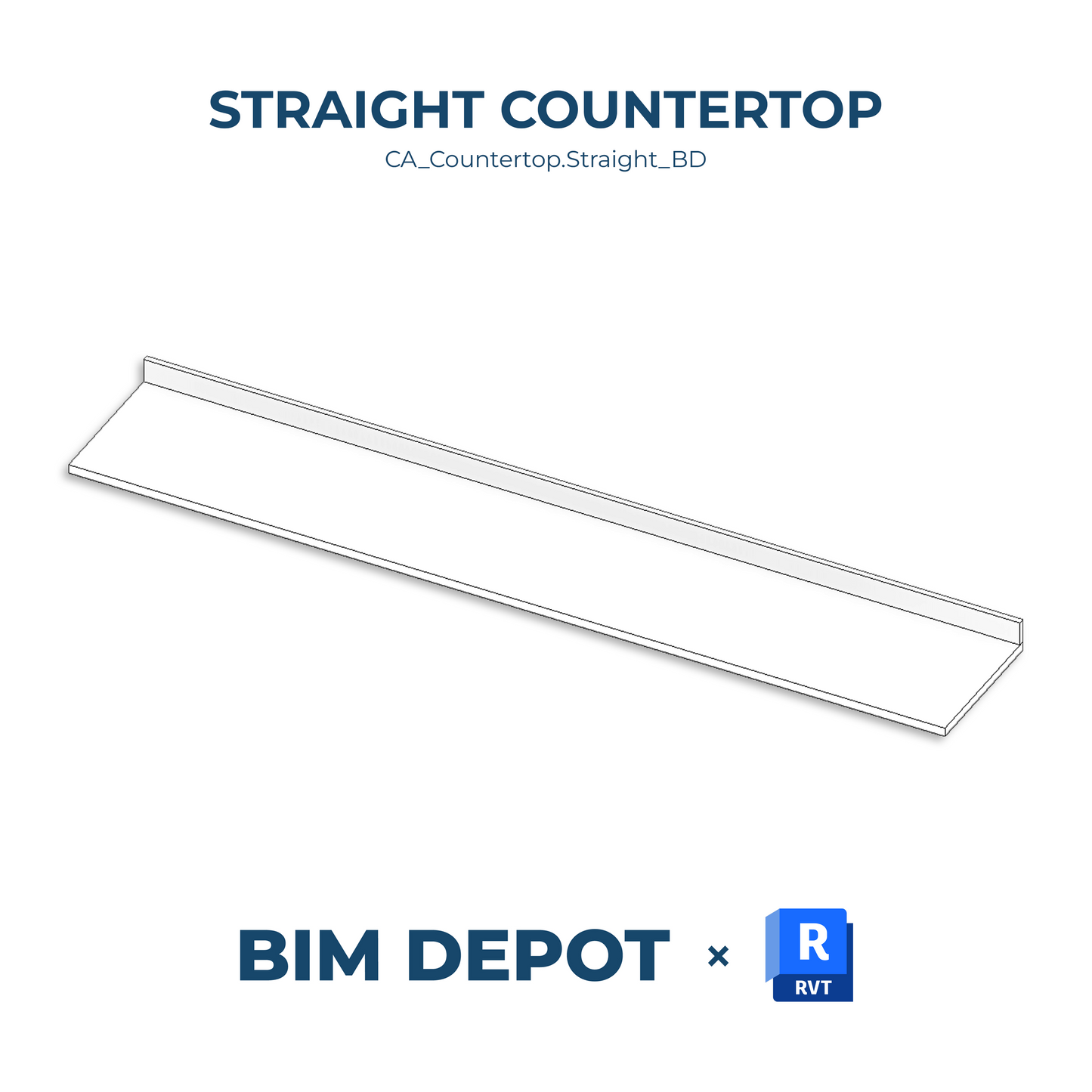

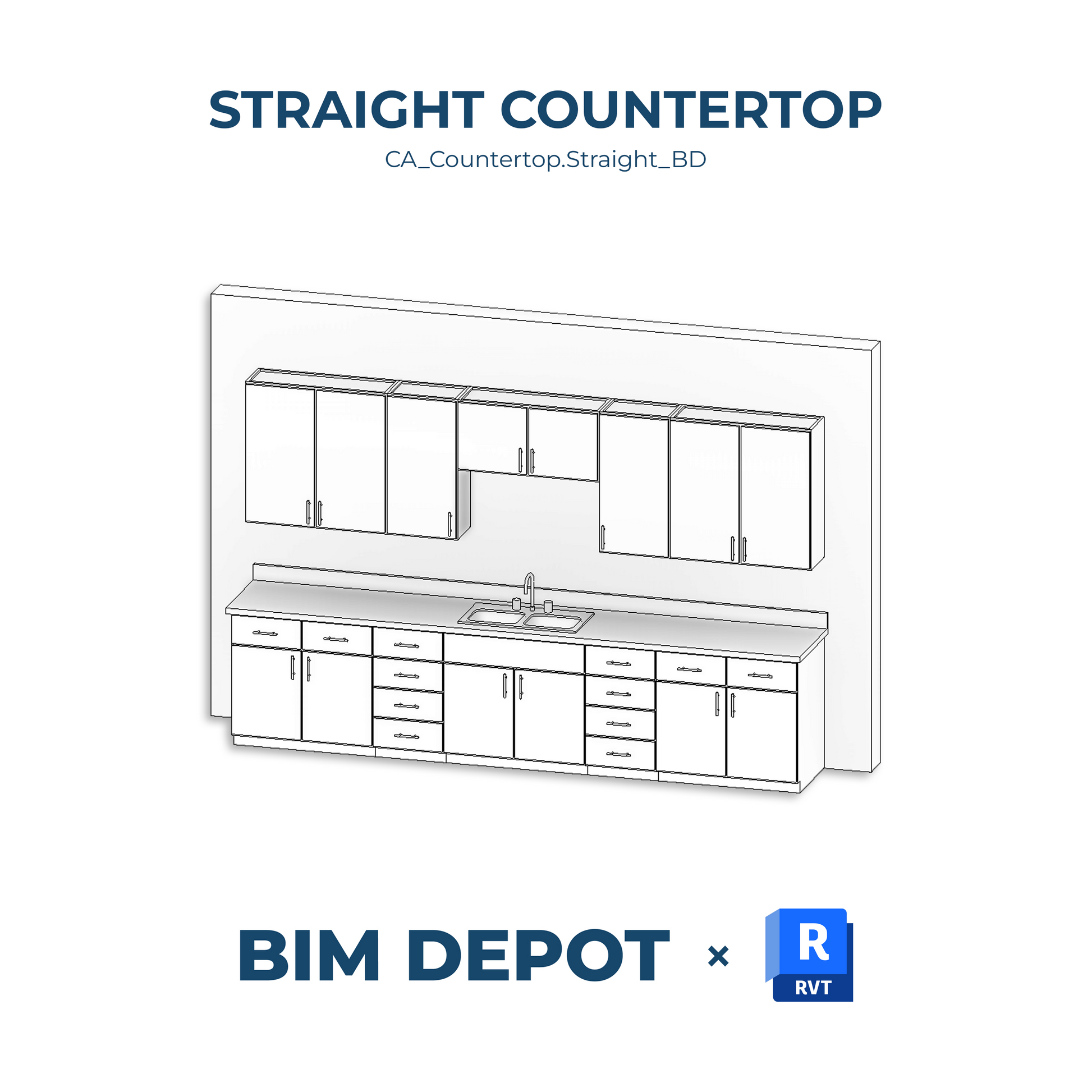

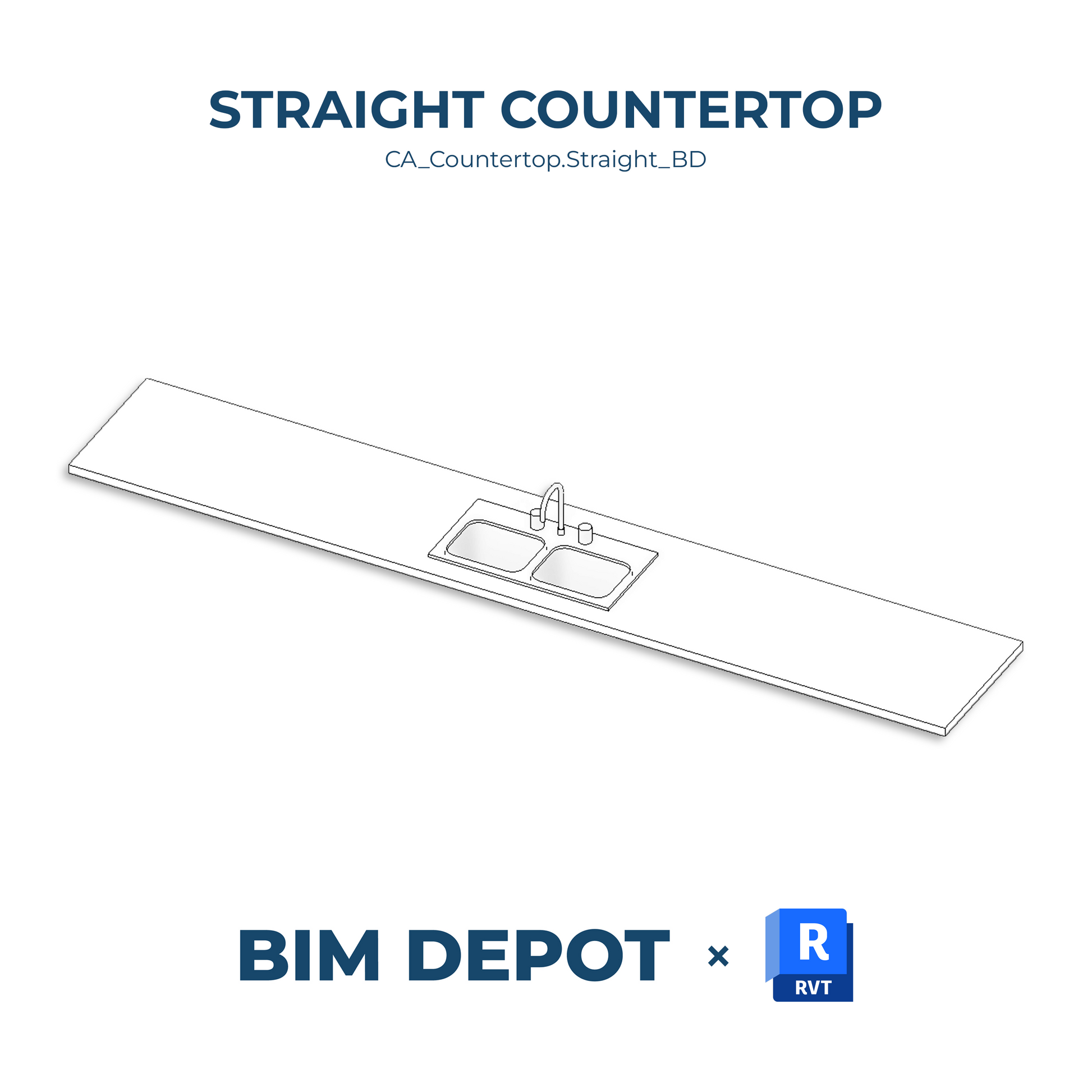

The Straight Countertop – Revit Casework Family by BIM Depot is a fully parametric, easy-to-use countertop component designed for clean integration with Revit base cabinets and casework systems. Perfect for kitchens, bathrooms, utility rooms, and commercial interiors, this family allows full control over length, depth, thickness, and overhangs for flexible layout and documentation.

Product Features

  • Fully parametric with adjustable dimensions and customizable overhangs
  • Clean symbolic graphics in plan and precise 3D geometry for elevations and views
  • Material parameters for rendering, visualization, and quantity takeoffs
  • Assigned to the Casework category with subcategory controls for visibility and graphics
  • Optimized for fast placement in both residential and commercial design workflows

Use Cases

  • Straight kitchen countertops and bathroom vanities
  • Utility room and laundry counters
  • Break room and worktop surfaces in commercial spaces
  • Interior elevations, 3D views, and detailed construction documentation
  • Any project needing consistent, coordinated countertop geometry in Revit

Part of the BIM Depot Casework Collection, this Straight Countertop family provides a fast, flexible solution for modeling clean, professional casework in your Revit projects.
