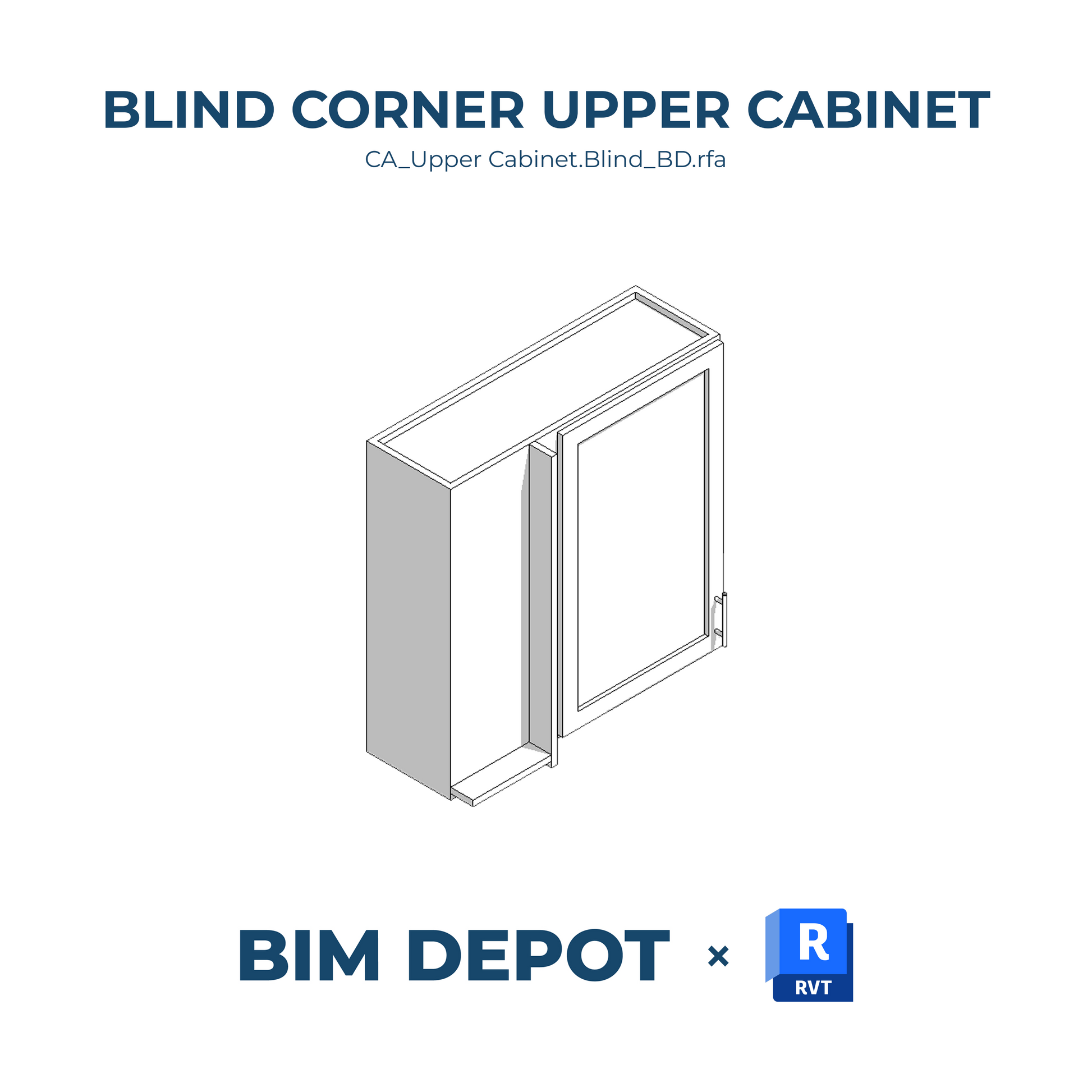

Upper Blind Corner Cabinet - Revit Casework Family

Upper Blind Corner Cabinet - Revit Casework Family

Exclusive Members Only Asset
Regular price Sale price $9 USD
Sale Sold out
System of Measurement

Maximize wall cabinet storage in tight layouts with this Upper Blind Corner Cabinet Revit Family. Designed for L-shaped kitchen configurations, this fully parametric casework component allows for clean integration into blind corners while maintaining accurate geometry, visibility, and graphic consistency across all Revit views.

Product Features

  • Fully parametric: adjustable width, height, depth, offset return, and door placement
  • Blind return design with customizable reveal dimensions
  • Clean symbolic graphics for plan and elevation views
  • Assigned to the Casework category with subcategory visibility control
  • Material parameters for visualization and scheduling

Use Cases

  • L-shaped kitchen wall cabinet layouts
  • Space-saving upper cabinet designs
  • Residential and multi-family kitchens
  • Interior elevations, 3D views, and construction documentation
  • Revit casework tagging and quantity takeoffs

This Upper Blind Corner Cabinet is part of the BIM Depot Revit Family Collection – purpose-built for architects, interior designers, and BIM professionals. Each family is designed to meet real-world cabinet standards while delivering fast, clean modeling and reliable documentation.

Pro Tip: Use this cabinet with BIM Depot’s wall, base, and tall cabinet families to create a fully coordinated Revit kitchen system. Become a BIM Depot Member to gain full access to all BIM Depot Revit Families.

Imperial & Metric versions compatible with Revit 2022 and newer.
