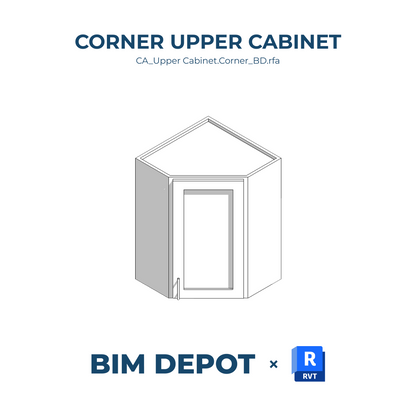

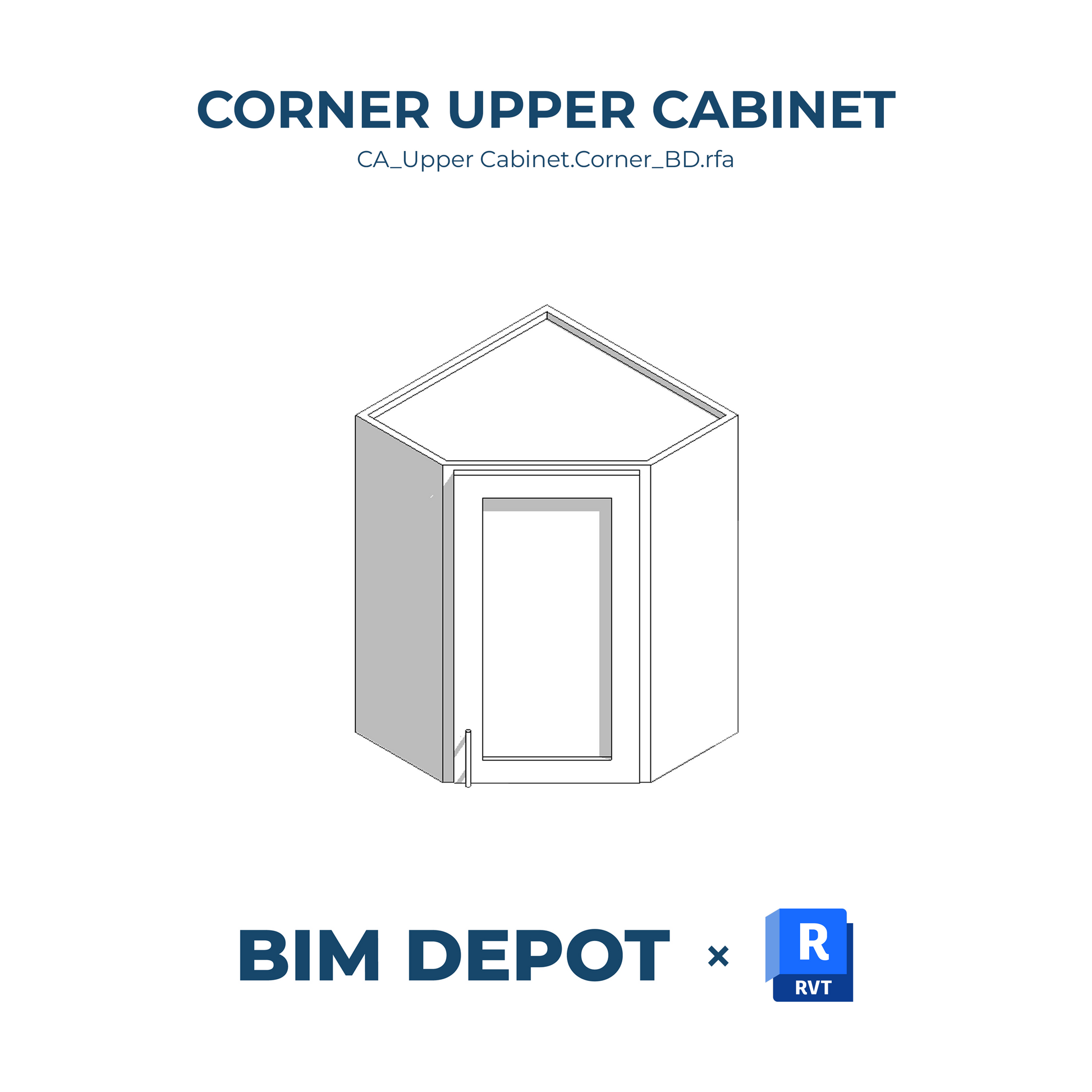

Upper Corner Cabinet - Revit Casework Family

Upper Corner Cabinet - Revit Casework Family

Exclusive Members Only Asset
Regular price Sale price $9 USD
Sale Sold out
System of Measurement

Simplify your wall cabinet layouts with this Upper Corner Cabinet Revit Family – a fully parametric casework component designed for clean corner transitions in kitchen and utility spaces. Perfect for L-shaped layouts, this family ensures accurate geometry, coordinated documentation, and polished visuals in every Revit view.

Product Features

  • Fully parametric: adjustable width, depth, height, and door swing
  • Diagonal front face for smooth corner integration
  • Symbolic plan graphics and clean elevation representations
  • Categorized under Casework with subcategories for lineweight and visibility control
  • Material parameters for rendering and scheduling

Use Cases

  • L-shaped kitchen wall cabinet layouts
  • Corner storage in residential or commercial kitchens
  • Utility and laundry room casework
  • Interior elevations, 3D views, and construction documentation
  • Revit cabinet schedules and quantity takeoffs

This Upper Corner Cabinet is part of the BIM Depot Revit Family Collection – built for clean modeling, professional documentation, and real-world casework accuracy. Whether you're designing a compact kitchen or a full-scale multi-unit layout, this cabinet integrates seamlessly into your Revit workflow.

Pro Tip: Pair with BIM Depot’s wall and base cabinet families for a complete, modular Revit kitchen system. Become a BIM Depot Member to gain full access to the entire collection of Revit Families.

Imperial & Metric versions compatible with Revit 2022 and newer.
