Wall Opening - Revit Generic Model Family

Wall Opening - Revit Generic Model Family

Exclusive Members Only Asset
Regular price Sale price $15 USD
Sale Sold out
Members Only! Click to join.

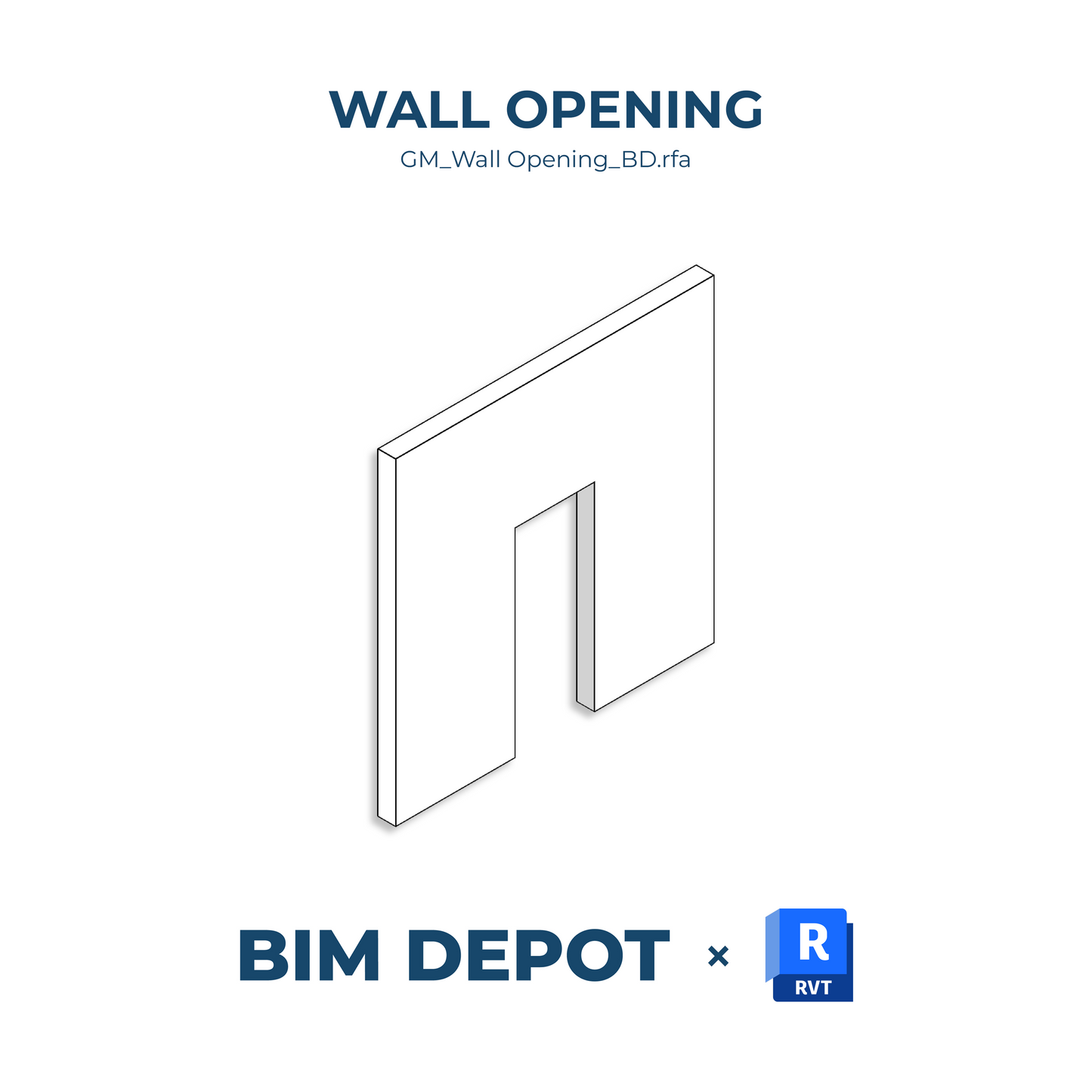

The Wall Opening – Revit Generic Model Family by BIM Depot allows you to quickly create rectangular openings in Revit walls without modifying wall profiles or sketches. This easy-to-use family is placed like a door but is built as a Generic Model, so it won’t appear in door schedules—keeping your documentation clean and intentional.

Product Features

  • Rectangular wall opening modeled as a Generic Model
  • Easily placed using the standard door placement workflow
  • Fully visible in plan, elevation, section, and 3D views
  • Will not appear in door or window schedules
  • Controlled through type parameters for consistent sizing and editing
  • Lightweight geometry designed for smooth performance

Use Cases

  • Open wall conditions in corridors, foyers, and commercial interiors
  • Visual or physical connections between spaces
  • Clean wall openings without needing hosted elements
  • Quick modeling of pass-throughs, niches, or recessed zones
  • Projects requiring scheduled doors and unscheduled openings to remain separate

Part of the BIM Depot Wall Opening Collection, this rectangular wall opening offers a streamlined solution for adding visual or functional wall cutouts in any Revit project. It's the ideal tool for designers who want control, flexibility, and clean documentation—all without sketch-based wall edits.

Pro Tip: Use alongside BIM Depot’s arched and segmental wall openings for a complete Revit-ready opening library. Become a BIM Depot Member to gain full access to the entire collection of Revit Families.

Imperial versions compatible with Revit 2024 and newer.
